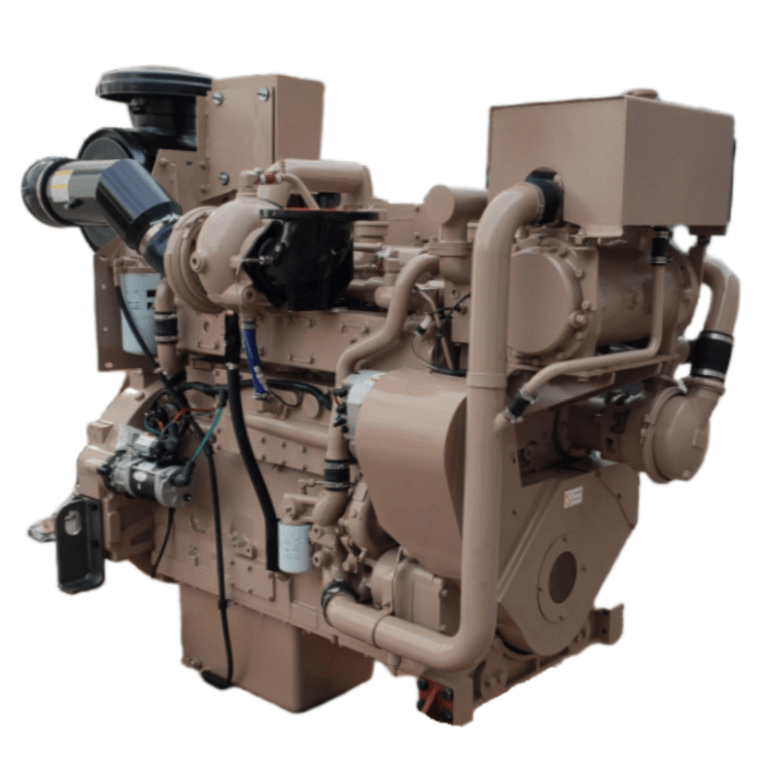

| KTA19-M3 477KW 640HP Marine Diesel Engine- General Information |
| Model: KTA19-M3 (640HP) |
| Type: 6 Cylinders in Line, 4 strokes |
| Displacement: 19 L |
| Bore * Stroke: 159 * 159 |
| Net Weight (with flywheel & alternator): 2251 Kg |
| Overall Dimension: 1666mm*874mm*1377mm |
| Manufacture Plant: Chongqing Cummins Plant |
| Engine Configuration No.: D193080MX02 |
| KTA19-M3 640 HP – Performance Data |
| Rated Power/Speed: 477 kW/640HP |
| Rated Speed: 1800 rpm |
| Rating Type: Continuous Duty |
| Max Torque/Speed: 2830 N.m @ 1400 rpm |
| Low Idle Speed: 650卤25 rpm |
| High Idle Speed: 1815-2106 rpm |
| Fuel Consumption (Running Speed): 119.9 L/hr |
| KTA19-M3 640 HP – Technical Specification |
| Certification: CCS/IMO Certificates |
| Aspiration: Turbocharged/Aftercooled |
| Fuel System: Cummins Pressure Time (PT Pump) |
| Starting System: Electrical Start (24V) |
| Governor Type: Mechanical Control |
| Compression Radio: 13.8:1 |
| Lowest Starting Temp Without auxiliary system: -12鈩?/span> |
| Cooling Method: Sea water pump, Heat exchanger, Water cooled |
| Rated power: 477 kW (640HP); Rated speed: 1800 rpm; |
| Packing Details: Dimension: 2000* 1100* 1600 mm, G.W: 2400 KG |
