NTA855-M220 – General Information

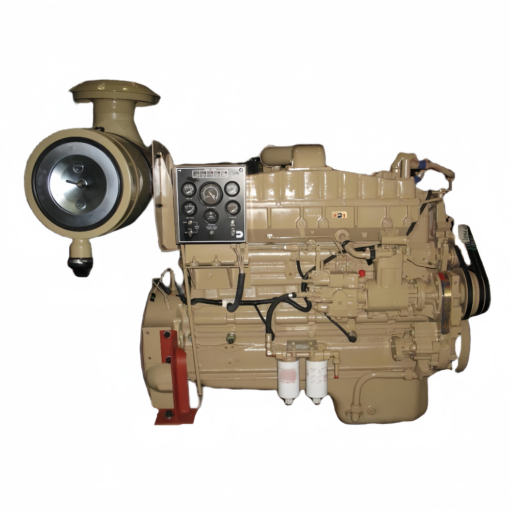

- Model: Cummins NTA855 164KW 220HP Marine Diesel Engine
- Type: 6 Cylinders in Line, 4 strokes
- Displacement: 14 L
- Bore * Stroke: 140 * 152
- Net Weight (with flywheel & alternator): 1385 Kg
- Overall Dimension: 1453mm*947mm*1296mm
- Manufacture Plant: Chongqing Cummins Plant
- Engine Configuration No.: D092347MX02
NTA855-M220 – Performance Data
- Rated Power/Speed: 164 kW/220HP
- Rated Speed: 1800 rpm
- Rating Type: Continuous Running Power
- Low Idle Speed: 575-675 rpm
- High Idle Speed: 1962-2106 rpm
- Fuel Consumption (Running Speed): 41 L/hr
NTA855-M220 – Technical Specification
- Certification: CCS/IMO Certificates
- Aspiration: Turbocharged/Aftercooled
- Fuel System: Cummins Pressure Time (PT Pump)
- Starting System: Electrical Start (24V)
- Governor Type: Mechanical Control
- Compression Radio: 14.5:1
- Lowest Starting Temp Without auxiliary system: -12℃
- Cooling Method: Sea water pump, Heat exchanger, Water cooled
