KTA50-M2 1700 HP – General Information

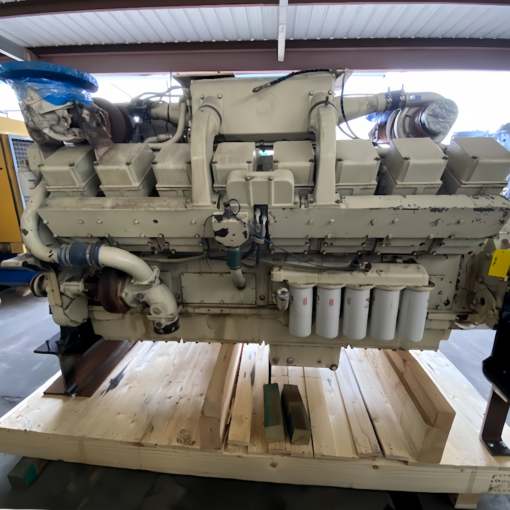

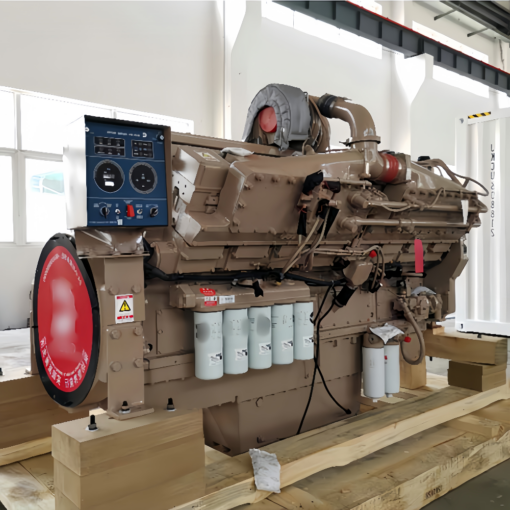

- Model: Cummins KTA50 1268KW 1700HP Marine Diesel Engine
- Type: 16 Cylinders, V Type, 4 strokes, Diesel
- Displacement: 50 L
- Bore * Stroke: 159 * 159
- Net Weight (with flywheel & alternator): 5742 Kg
- Overall Dimension: 2694mm*1564mm*2260mm
- Manufacture Plant: Chongqing Cummins Plant
- Engine Configuration No.: D283033MX02
KTA50-M2 1700 HP – Performance Data
- Rated Power/Speed: 1268 kW/1700HP
- Rated Speed: 1800 rpm
- Rating Type: Heavy Duty
- Torque/Rated Speed: 7020 N.m @ 1500 rpm
- Rated Engine Torque: 6725 N.m @ 1800 rpm
- Low Idle Speed: 650±25 rpm
- High Idle Speed: 1860-2016 rpm
- Fuel Consumption (Running Speed): 309.9 L/hr
KTA50-M2 1700 HP – Technical Specification
- Certification: CCS/IMO2 Certificates
- Aspiration: Turbocharged/Jacket water Aftercooled
- Fuel System: Cummins Pressure Time (PT Pump)
- Starting System: Electrical Start (24V)
- Governor Type: Mechanical Control
- Compression Radio: 13.9:1
- Firing Order: 1R-1L-3R-3L-2R-2L-5R-4L-8R-8L-6R-6L-7R-7L-4R-5L
- Lowest Starting Temp Without auxiliary system: -12℃
- Cooling Method: Sea water pump, Heat exchanger, Water cooled
