KTA19-M3 640 HP – General Information

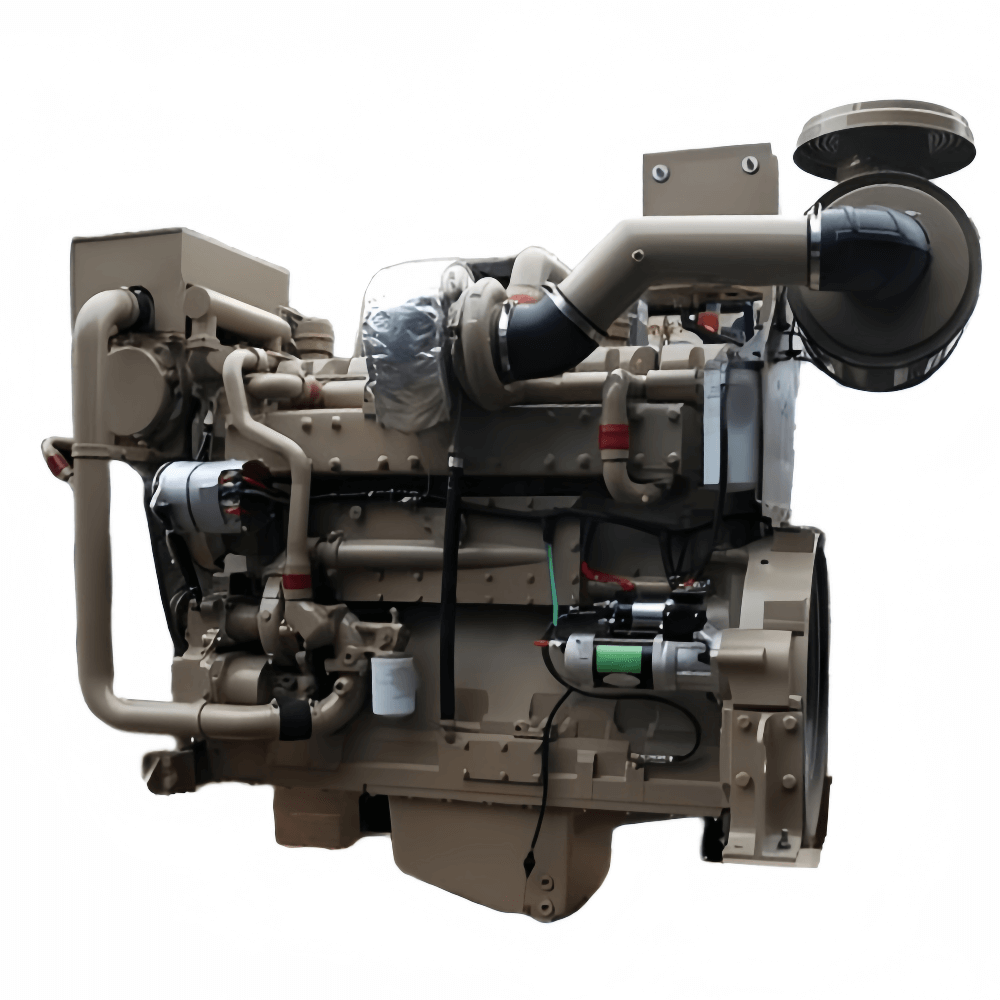

- Model: Cummins KTA19 477KW 640HP Marine Diesel Engine
- Type: 6 Cylinders in Line, 4 strokes
- Displacement: 19 L
- Bore * Stroke: 159 * 159
- Net Weight (with flywheel & alternator): 2251 Kg
- Overall Dimension: 1666mm*874mm*1377mm
- Manufacture Plant: Chongqing Cummins Plant
- Engine Configuration No.: D193080MX02
KTA19-M3 640 HP – Performance Data
- Rated Power/Speed: 477 kW/640HP
- Rated Speed: 1800 rpm
- Rating Type: Continuous Duty
- Max Torque/Speed: 2830 N.m @ 1400 rpm
- Low Idle Speed: 650±25 rpm
- High Idle Speed: 1815-2106 rpm
- Fuel Consumption (Running Speed): 119.9 L/hr
KTA19-M3 640 HP – Technical Specification
- Certification: CCS/IMO Certificates
- Aspiration: Turbocharged/Aftercooled
- Fuel System: Cummins Pressure Time (PT Pump)
- Starting System: Electrical Start (24V)
- Governor Type: Mechanical Control
- Compression Radio: 13.8:1
- Lowest Starting Temp Without auxiliary system: -12℃
- Cooling Method: Sea water pump, Heat exchanger, Water cooled
