General Information

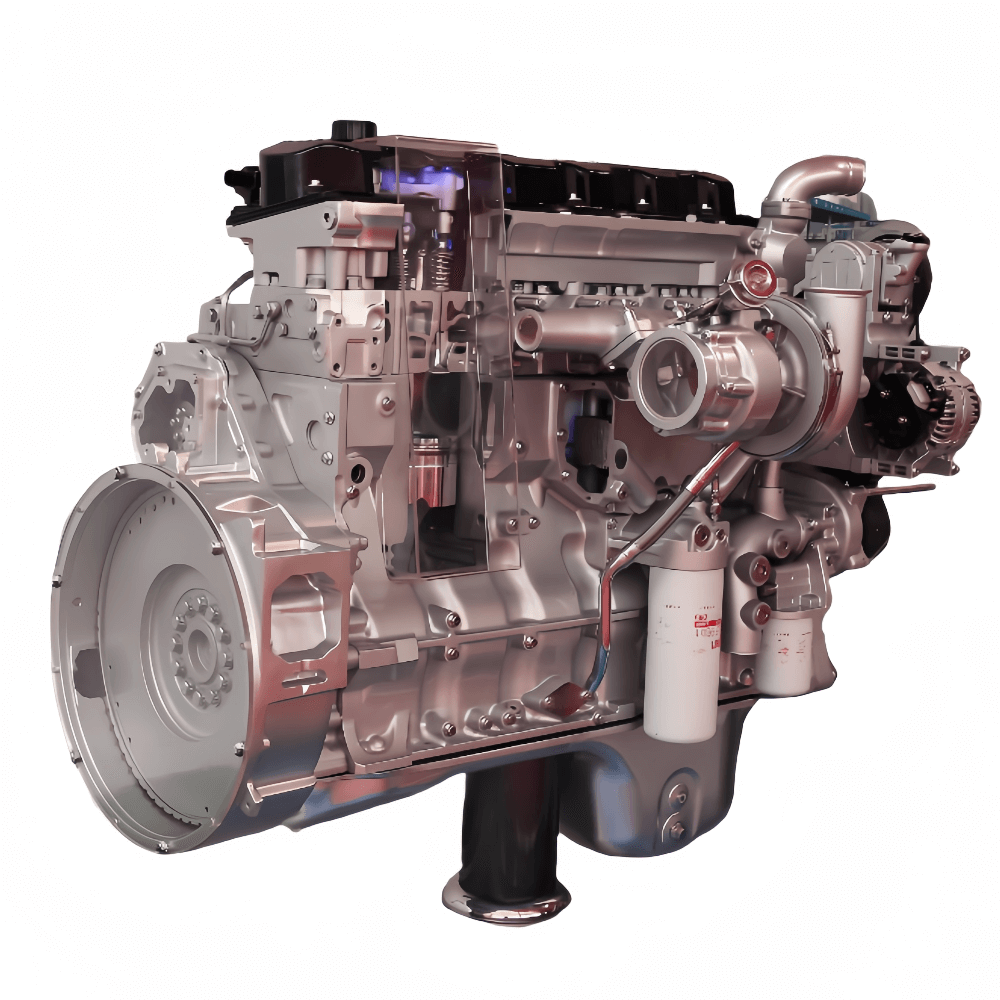

- Model: Cummins ISZ 335KW 450HP Vehicle Diesel Engine
- Type: 6 Cylinders in Line
- Displacement: 13 L
- Bore * Stroke: 130 * 163
- Net Weight (with flywheel & alternator): 1195 Kg
- Overall Dimension: 1389mm*1016mm*1233mm
- Manufacture Plant: Dongfeng Cummins Plant
Performance Data
- Rated Power/Speed: 335 kW/450HP
- Rated Speed: 2100 rpm
- Max. No-Load Speed: 2300 rpm
- Idle Speed: 6000-800 rpm
- Max Torque/Speed: 2237 N.m @ 1200 rpm
- Torque/Rated Speed: 1525 N.m @ 2100 rpm
- Max. Altitude For Continuous Running: 5200 m
Technical Specification
- Certification: Euro IV
- Aspiration: Turbocharged & Charge Air Cooled
- Fuel System: Cummins XPI Fuel System/ECM
- Compression Radio: 17:1
- Electrical System (Starter Motor/Alternator): 24V (750A)
- Lowest Starting Temp Without auxiliary system: -15℃/-30℃
- Engine Coolant Volume: 23.1 L
- Cooling Method: Water Cooled
