General Information

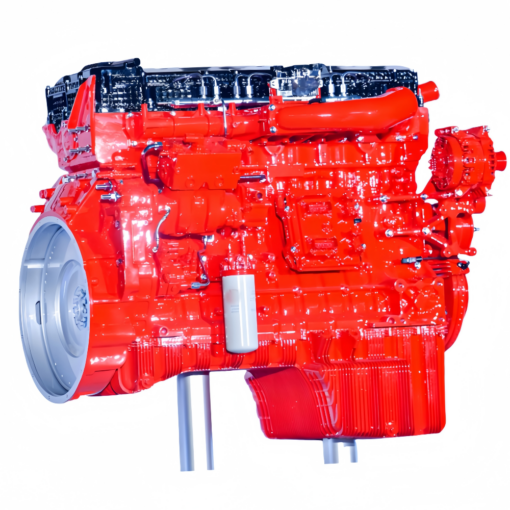

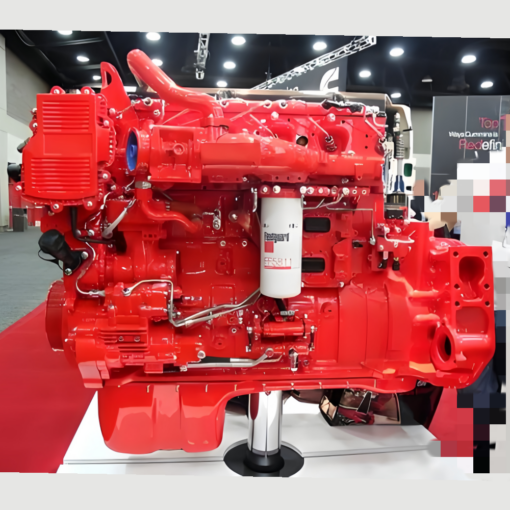

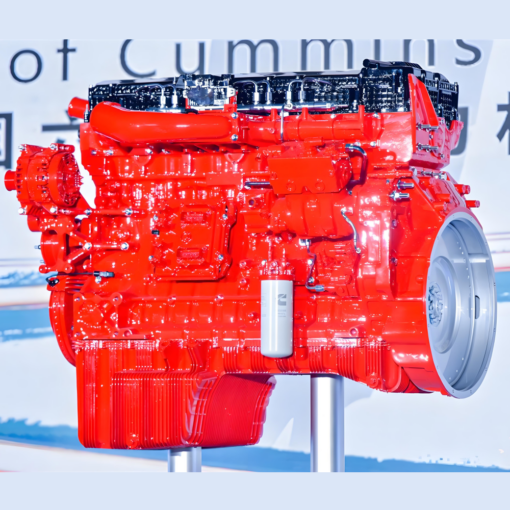

- Model: Cummins ISX 386KW 525HP Vehicle Diesel Engine
- Type: 6 Cylinders in Line
- Displacement: 15 L
- Net Weight (with flywheel & alternator): 1344 Kg
- Manufacture Plant: Dongfeng Cummins Plant
Performance Data
- Rated Power/Speed: 386 kW/525HP
- Rated Speed: 2000 rpm
- Max Torque/Speed: 2237 N.m @ 1200 rpm
- Clutch Engagement Torque: 1356 N.m
Technical Specification
- Certification: Euro III
- Aspiration: Turbocharged/Charge Air Cooled+CEGR
- Fuel System: Cummins XPI Fuel System/ECM
- Emission Method: DPF/Aftertreatment
- Starting System: Electrical Starting Motor 24V
- Lowest Starting Temp Without auxiliary system: -15℃/-30℃
- Engine Coolant Volume: 23.1 L
- Cooling Method: Water Cooled
