General Information

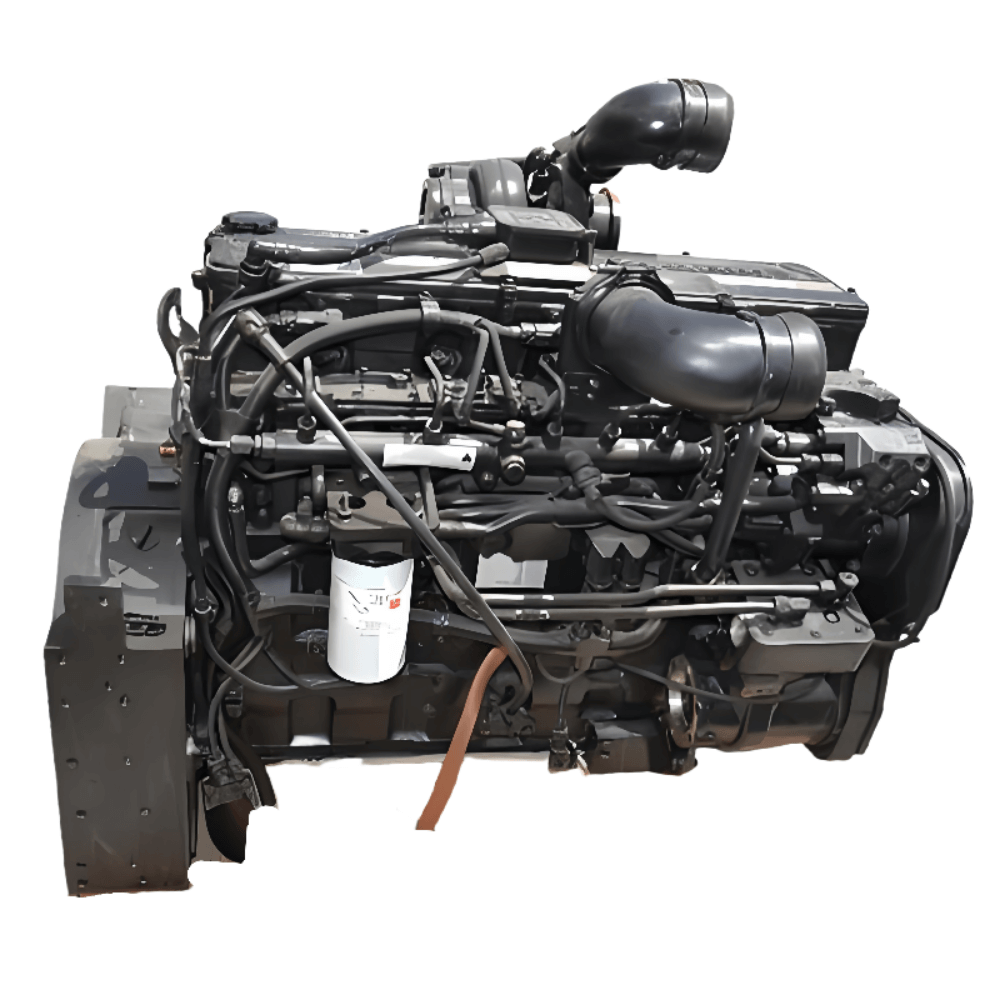

- Model: Cummins ISLe290-30 213KW 290HP Vehicle Diesel Engine
- Type: 6 Cylinders in Line
- Displacement: 8.9 L
- Bore * Stroke: 114 * 144.5
- Net Weight (with flywheel & alternator): 706 Kg
- Overall Dimension: 1147mm*767mm*1104mm
- Manufacture Plant: Dongfeng Cummins Plant
Performance Data
- Rated Power/Speed: 213 kW/290HP
- Rated Speed: 2100 rpm
- Max Torque/Speed: 1050 N.m @ 1100-1900 rpm
- Max. No-load Governed Speed: 2330 rpm
- Torque/rated Speed: 970 N.m @ 2100 rpm
- Idle-Speed: 600-800 rpm
- Fuel Consumption @ Rated Power: 210g/Kw.h
- Max Continuous Running Altitude: 4500 m
Technical Specification
- Certification: Euro III
- Aspiration: Turbocharged & Charge Air Cooled
- Fuel System: Bosch Common rial (CCR)/ECM Governor
- Compression Radio: 16.6:1
- Electrical System (Starter Motor/Alternator): 24V (750A)
- Lowest Starting Temp Without auxiliary system: -12℃/-33℃
- Engine Cooling Fluid Volume: 11.1 L
- Cooling Method: Water Cooled
