General Information

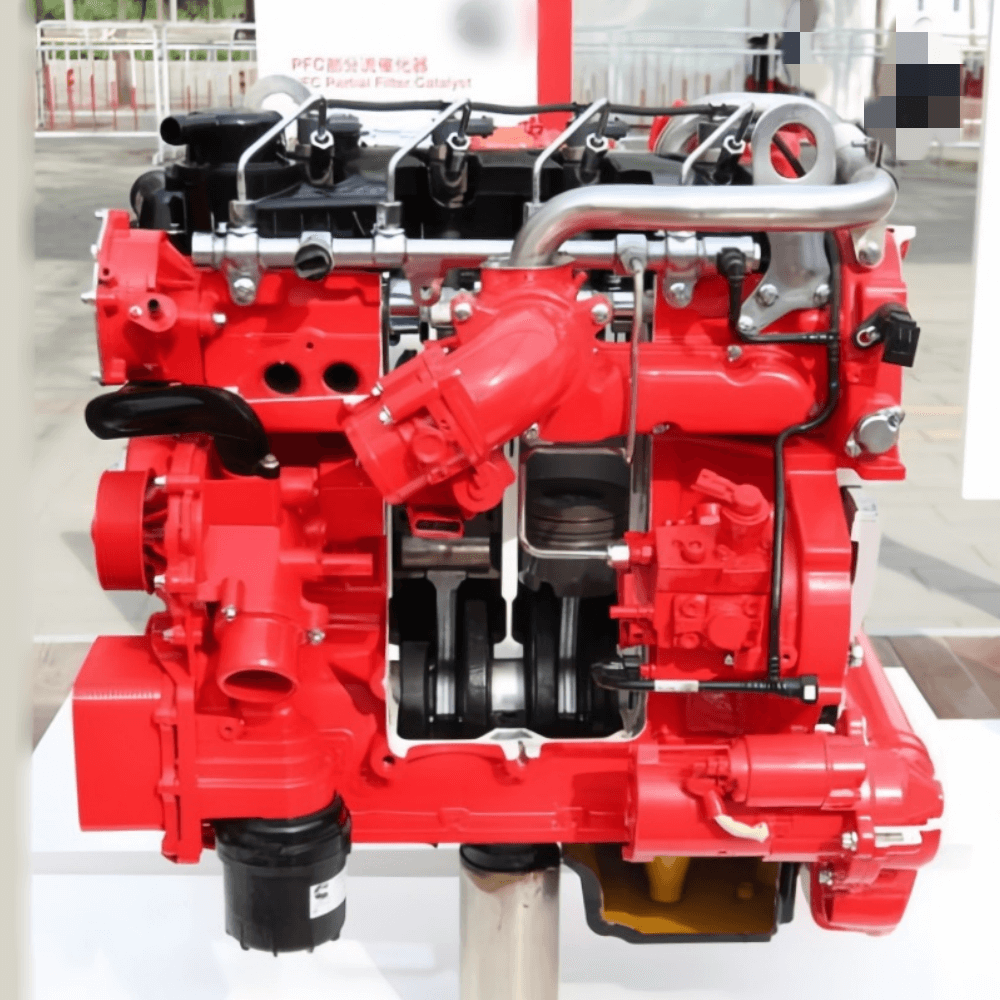

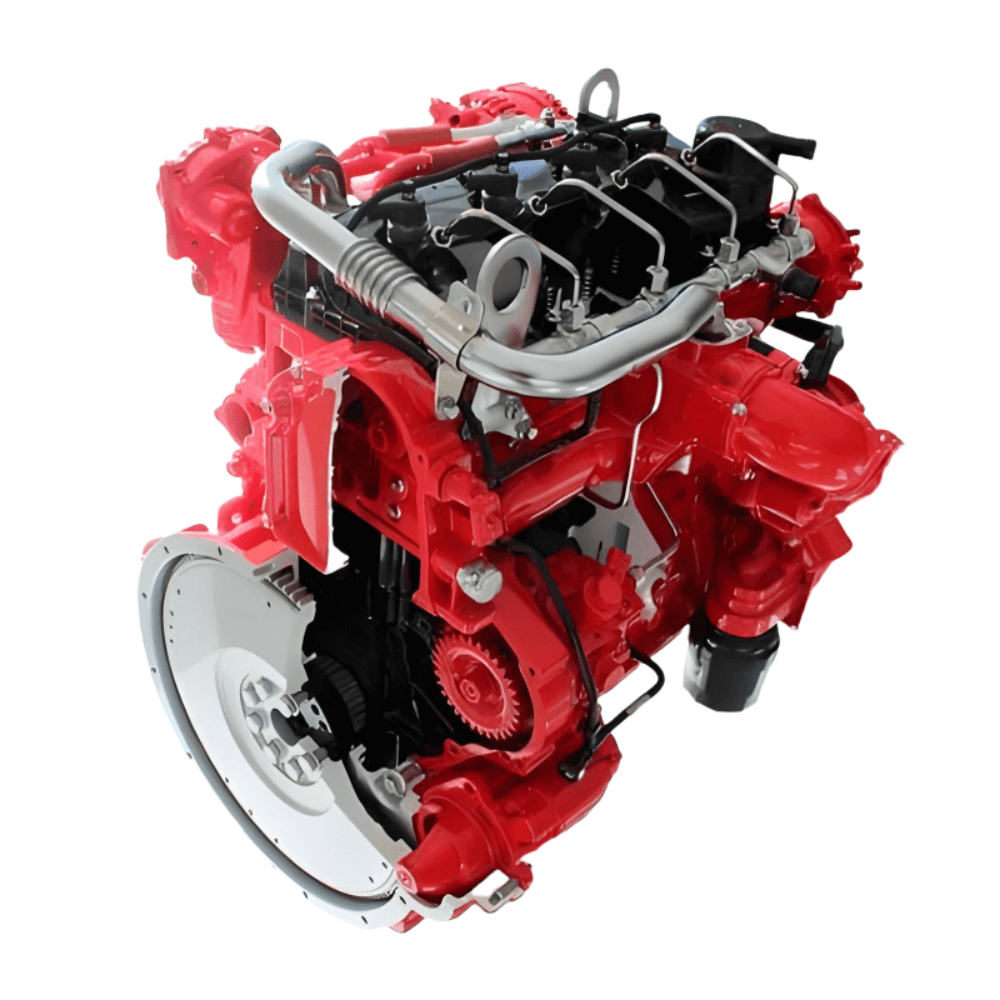

- Model: Cummins ISF2.8 96KW 129HP Vehicle Diesel Engine
- Type: 4 Cylinders in Line
- Displacement: 2.78 L
- Bore * Stroke: 94 * 100
- Net Weight (with flywheel & alternator): 214 Kg
- Overall Dimension: 606mm*641mm*632mm
- Manufacture Plant: Dongfeng Cummins Plant
Performance Data
- Rated Power/Speed: 96 kW/129HP
- Rated Speed: 3200 rpm
- Max Torque/Speed: 310 N.m @ 1600-2700 rpm
- Max. No-load Governed Speed: 3600 rpm
- Idle-Speed: 750 rpm
- Min. Fuel Consumption: 205g/Kw.h
- Max Continuous Running Altitude: 2000 m
Technical Specification
- Certification: Euro III
- Aspiration: Turbocharged & Charge Air Cooled
- Fuel System: Bosch Direct Injection/HPCR, SCR
- Compression Radio: 16.5:1
- Starting System: Electrical Starting Motor 24V
- Starting Temp (with/without auxiliary system): -10℃/-25℃
- Engine Cooling Fluid Volume: 11.1 L
- Cooling Method: Water Cooled
