General Information

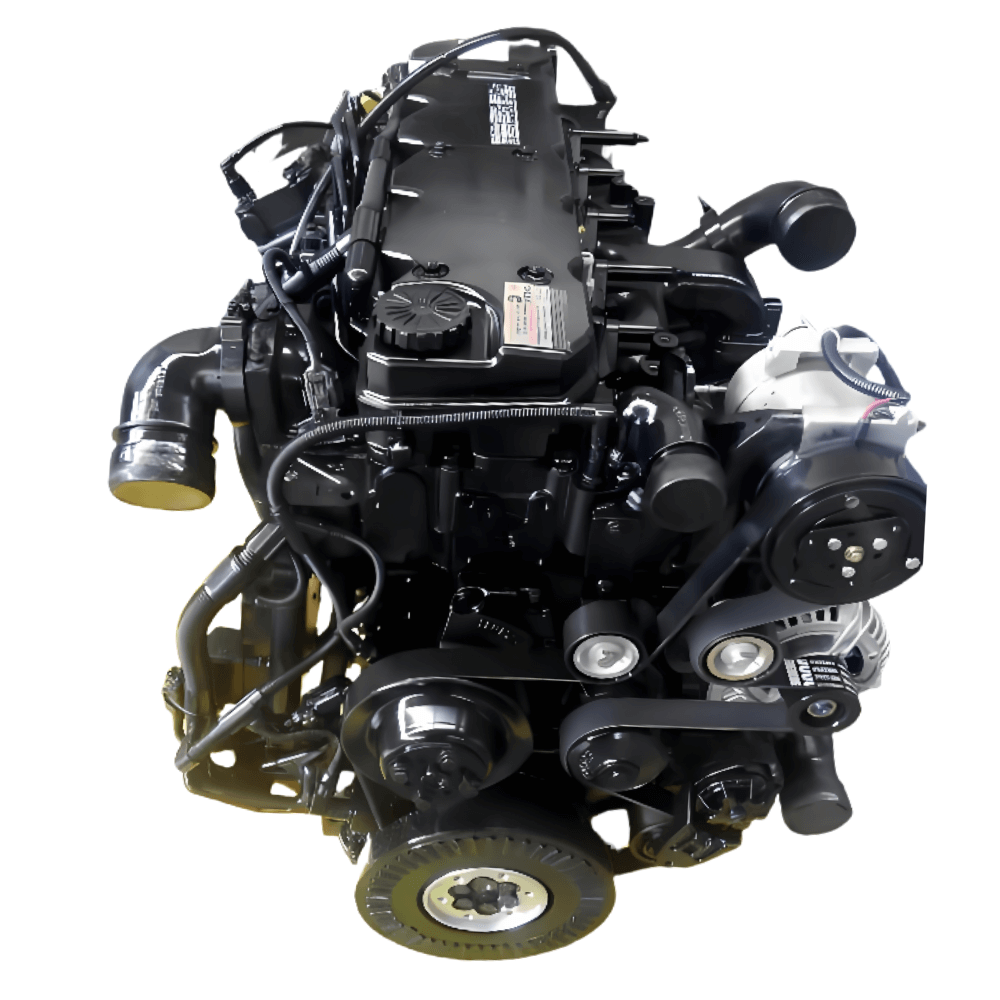

- Model: Cummins ISDe285-30 210KW 285HP Vehicle Diesel Engine
- Type: 4 Cylinders in Line
- Displacement: 6.7 L
- Bore * Stroke: 107 * 124
- Net Weight (with flywheel & alternator): 509 Kg
- Overall Dimension: 901mm*723mm*815mm
- Manufacture Plant: Dongfeng Cummins Plant
Performance Data
- Rated Power/Speed: 210 kW/285HP
- Rated Speed: 2500 rpm
- Max Torque/Speed: 970 N.m @ 1400 rpm
- Max. No-load Governed Speed: 2850 rpm
- Idle-Speed: 600-800 rpm
- Fuel Consumption @ Rated Power: 195g/Kw.h
- Max Continuous Running Altitude: 3000 m
Technical Specification
- Certification: Euro III/IV
- Aspiration: Turbocharged & Charge Air Cooled
- Fuel System: Bosch Direct Injection (HPCR)
- Compression Radio: 17.3:1
- Electrical System (Starter Motor/Alternator): 24V (750A)
- Lowest Starting Temp Without auxiliary system: -12℃/-25℃
- Engine Cooling Fluid Volume: (.4 L
- Cooling Method: Water Cooled
