General Information

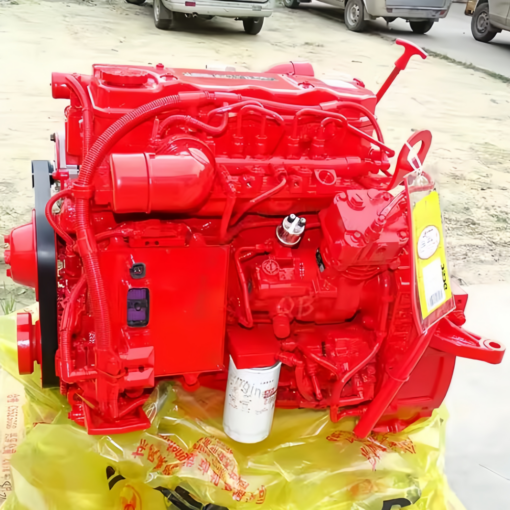

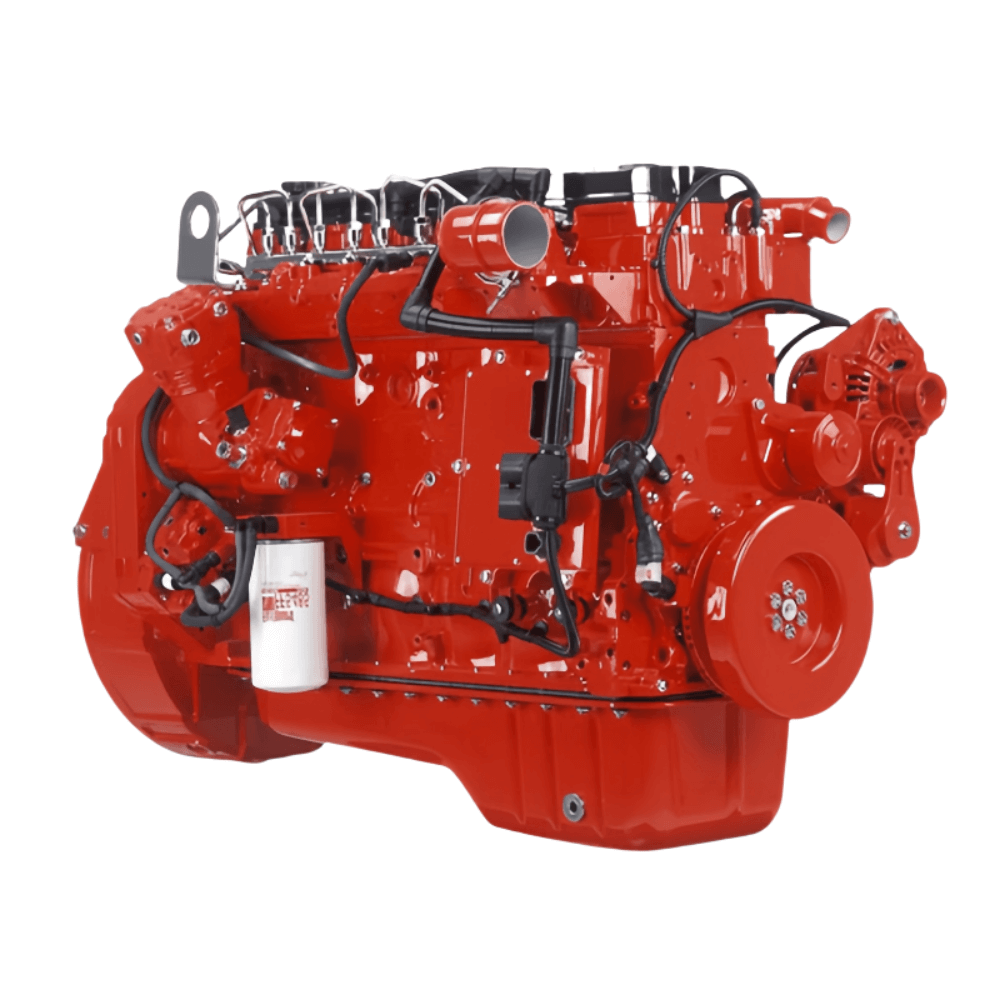

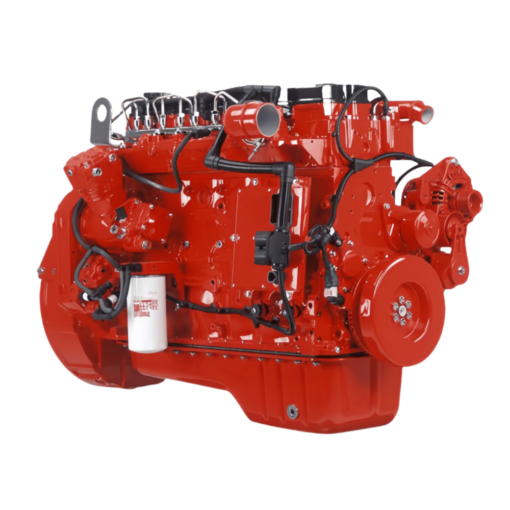

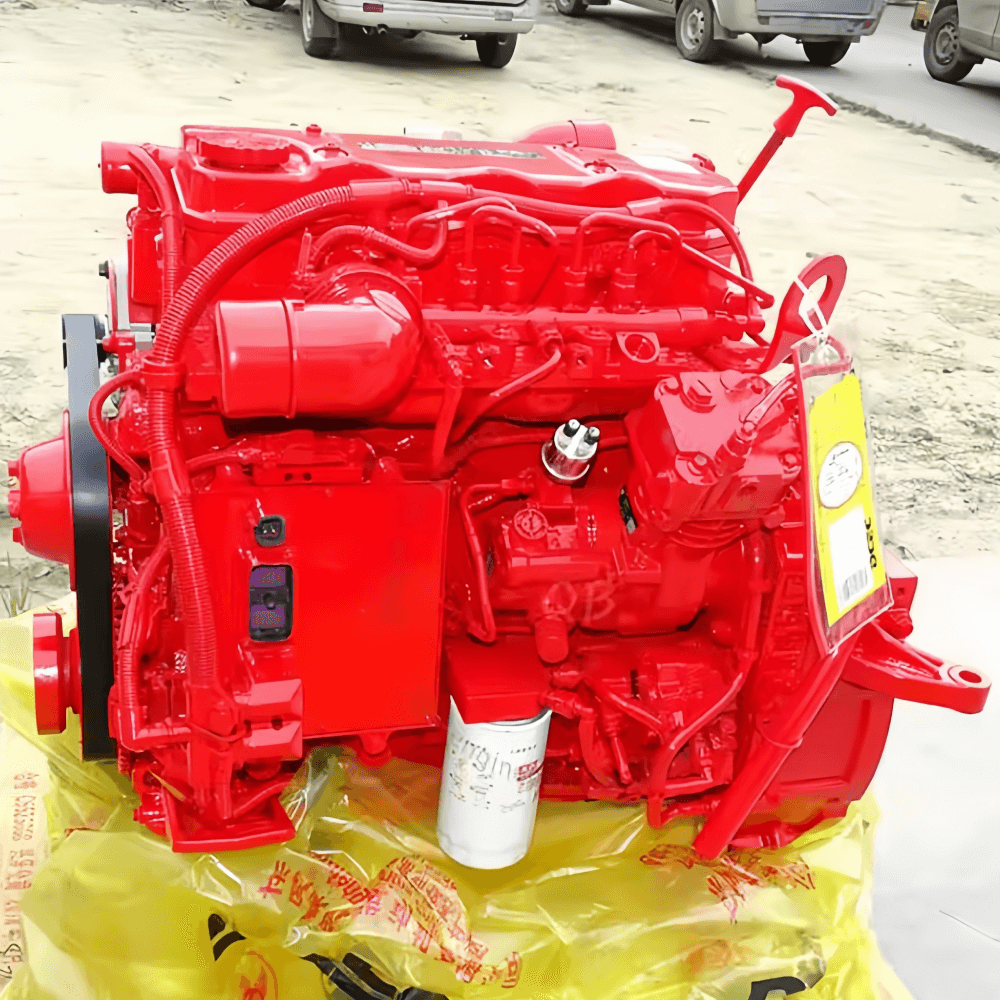

- Rated Power/Speed: Cummins ISDe180-30 132KW 180HP Vehicle Diesel Engine
- Rated Speed: 2500 rpm
- Max Torque/Speed: 650 N.m @ 1200-1700 rpm
- Max. No-load Governed Speed: 2850 rpm
- Torque/Rated Speed: 520 N.m @ 2500 rpm
- Idle-Speed: 600-800 rpm
- Fuel Consumption @ Rated Power: 195g/Kw.h
- Max Continuous Running Altitude: 3000 m
Performance Data
- Rated Power/Speed: 132 kW/180HP
- Rated Speed: 2500 rpm
- Max Torque/Speed: 650 N.m @ 1200-1700 rpm
- Max. No-load Governed Speed: 2850 rpm
- Torque/Rated Speed: 520 N.m @ 2500 rpm
- Idle-Speed: 600-800 rpm
- Fuel Consumption @ Rated Power: 195g/Kw.h
- Max Continuous Running Altitude: 3000 m
Technical Specification
- Certification: Euro III
- Aspiration: Turbocharged & Charge Air Cooled
- Fuel System: Bosch Direct Injection (HPCR)
- Compression Radio: 17.3:1
- Electrical System (Starter Motor/Alternator): 24V (750A)
- Lowest Starting Temp Without auxiliary system: -10℃/-25℃
- Engine Cooling Fluid Volume: 7.0 L
- Cooling Method: Water Cooled
