ISBe 205 – General Information

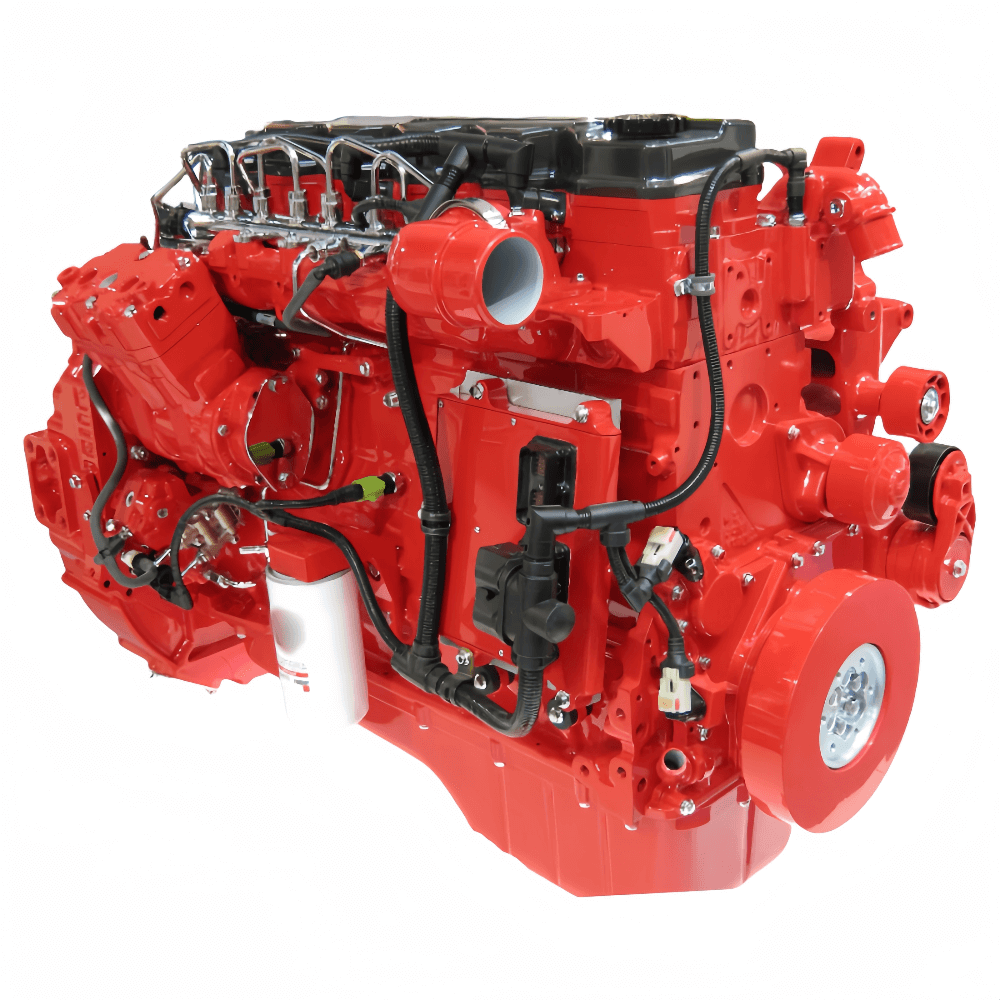

- Model: Cummins ISBe 151KW 205HP Vehicle Diesel Engine
- Type: 6 Cylinders in Line
- Displacement: 5.9 L
- Bore * Stroke: 102 * 120
- Net Weight (with flywheel & alternator): 453 Kg
- Overall Dimension: 1095mm*744mm*905mm
- Manufacture Plant: Dongfeng Cummins Plant
ISBe 205 – Performance Data
- Rated Power/Speed: 151 kW/205HP
- Rated Speed: 2500 rpm
- Idle Speed: 600-800 rpm
- Fuel Consumption @ rated Power: 20.8 L/hr
- Max. Altitude for Continuous Opera: 2000 m
- Max. Torque/Speed: 700 N.m @ 1100-1800 rpm
ISBe 205 – Technical Specification
- Certification: Euro III
- Aspiration: Turbocharged & Intercooled
- Fuel System: DESNO HPCR Pump/ ECM2220
- Compression Radio: (17.3±0.5):1
- Starting System: Electrical Starting Motor 24V(510A)
- Lowest Starting Temp Without auxiliary system: -10℃/-41℃
- Engine Cooling Fluid Volume: 7.0 L
- Cooling Method: Water Cooled
