General Information

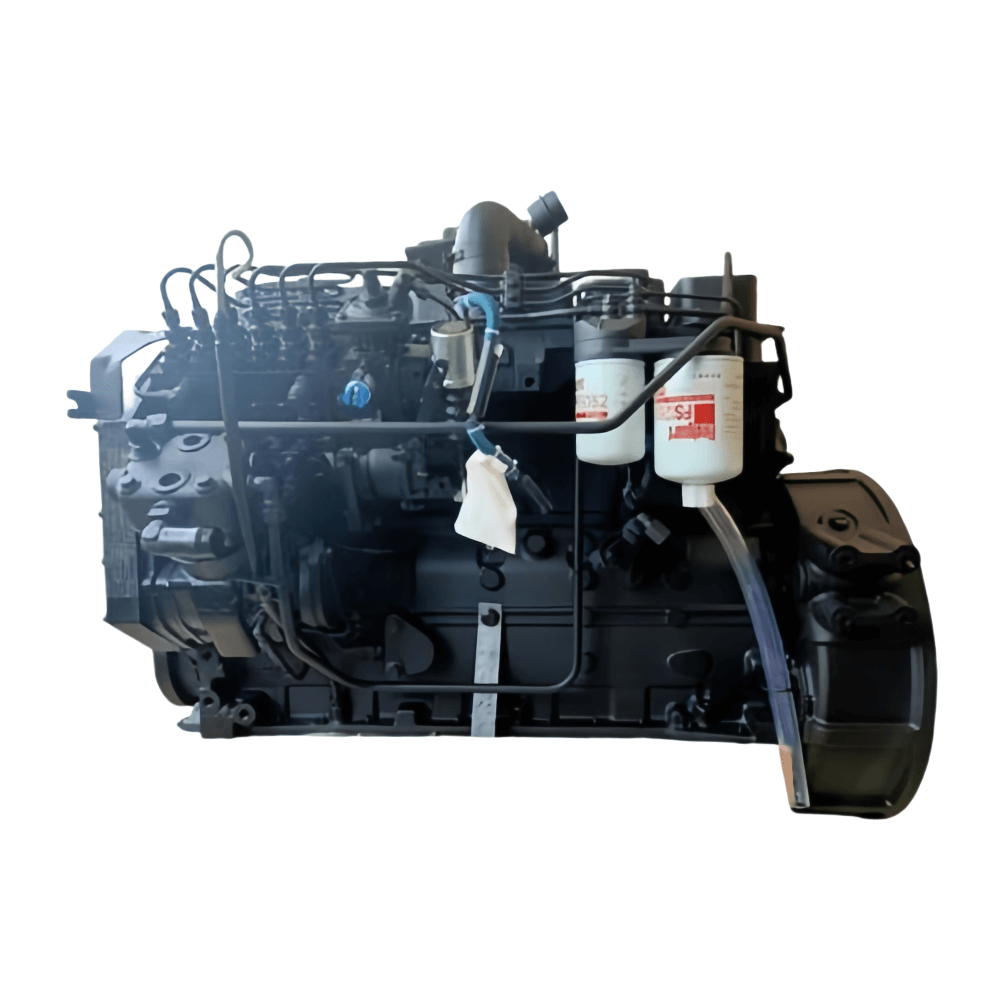

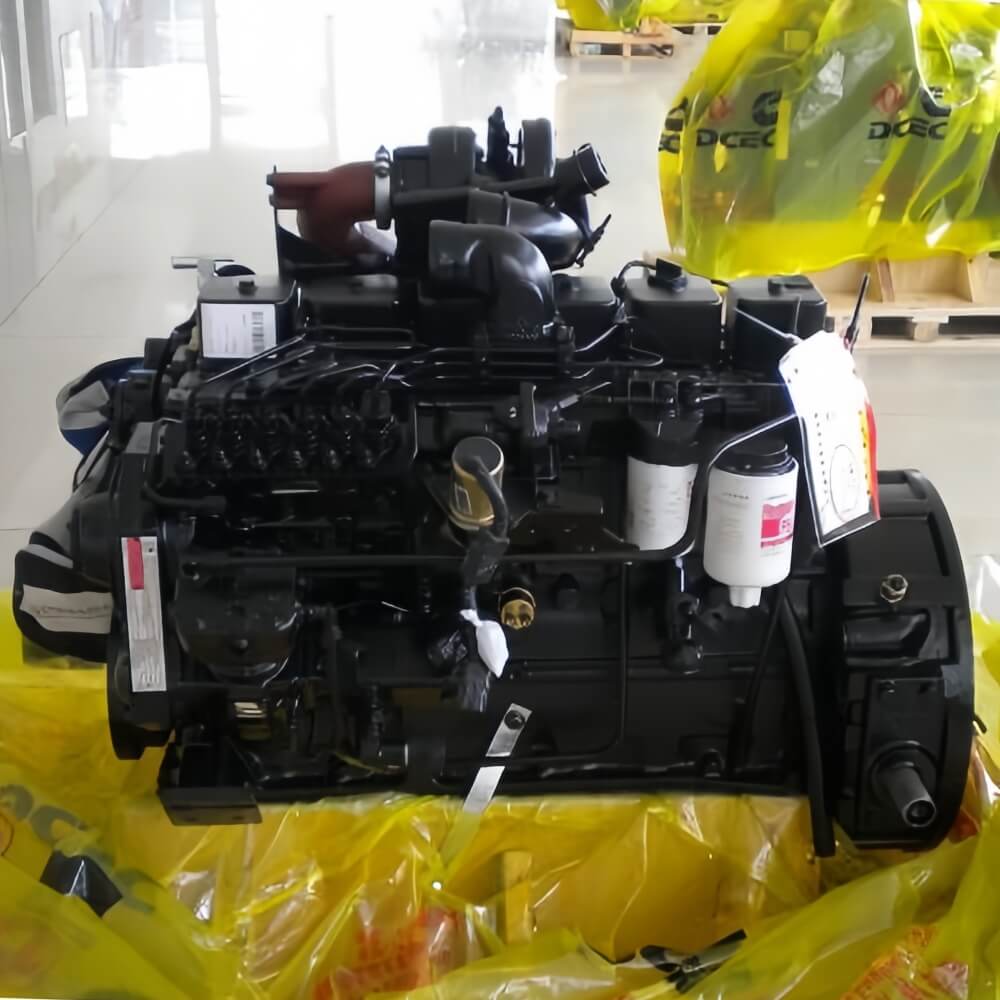

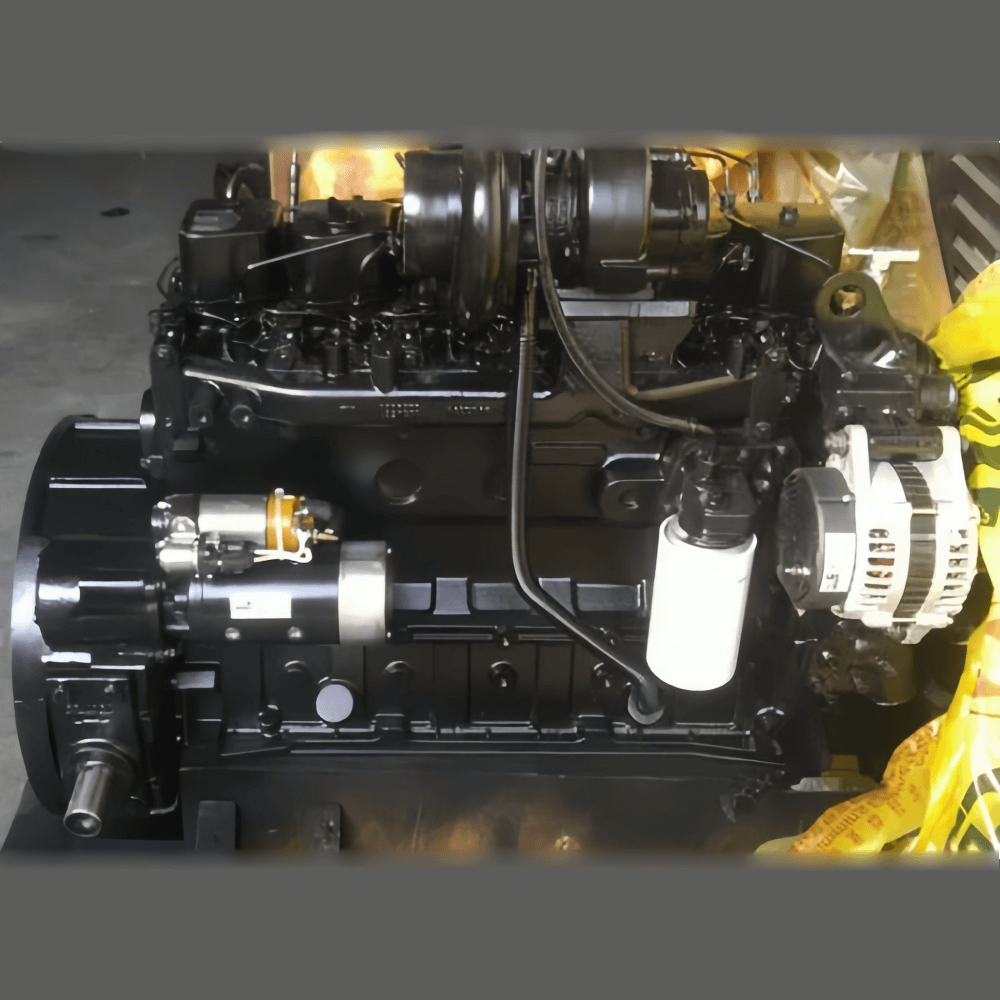

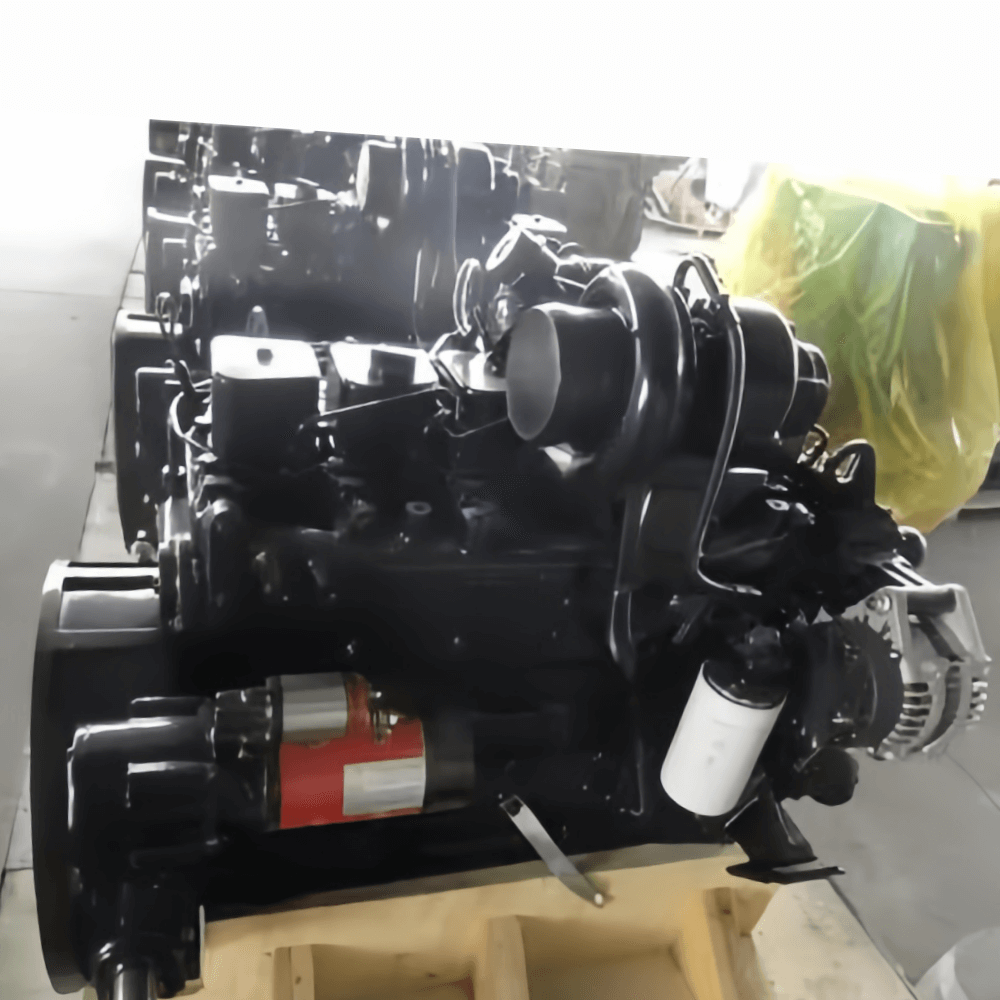

Model: Cummins EQB210-20 155KW 210HP Vehicle Diesel Engine
Type: 6 Cylinders in Line
Displacement: 5.9L
Bore * Stroke: 102 * 120
Net Weight (with flywheel & alternator): 413 Kg
Overall Dimension: 1026mm*699mm*912mm
Manufacture Plant: Dongfeng Cummins Plant
Performance Data
Rated Power/Speed: 155 kW/210HP
Rated Speed: 2500 rpm
Max Torque/Speed: 700 N.m @ 1500 rpm
Max. No-load Governed Speed: 2850 rpm
Idle-Speed: 750 rpm
Fuel Consumption @ Rated Power: 249g/Kw.h
Max Continuous Running Altitude: 3000 m
Technical Specification
Certification: Euro II
Aspiration: Turbocharged & Intercooled
Fuel System: Wuxi Weifu Pump
Compression Radio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V (500A)/24V (250A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Engine Cooling Fluid Volume: 9.0 L
Cooling Method: Water Cooled
