General Information

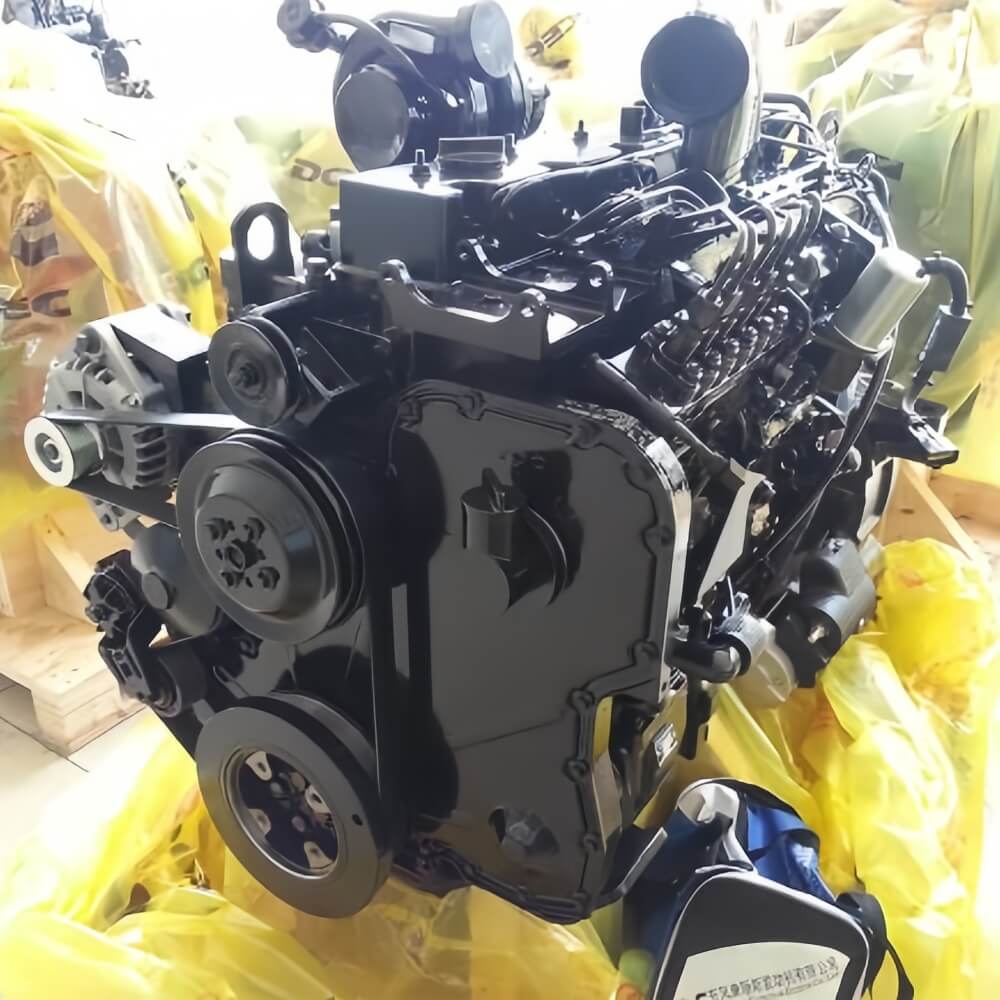

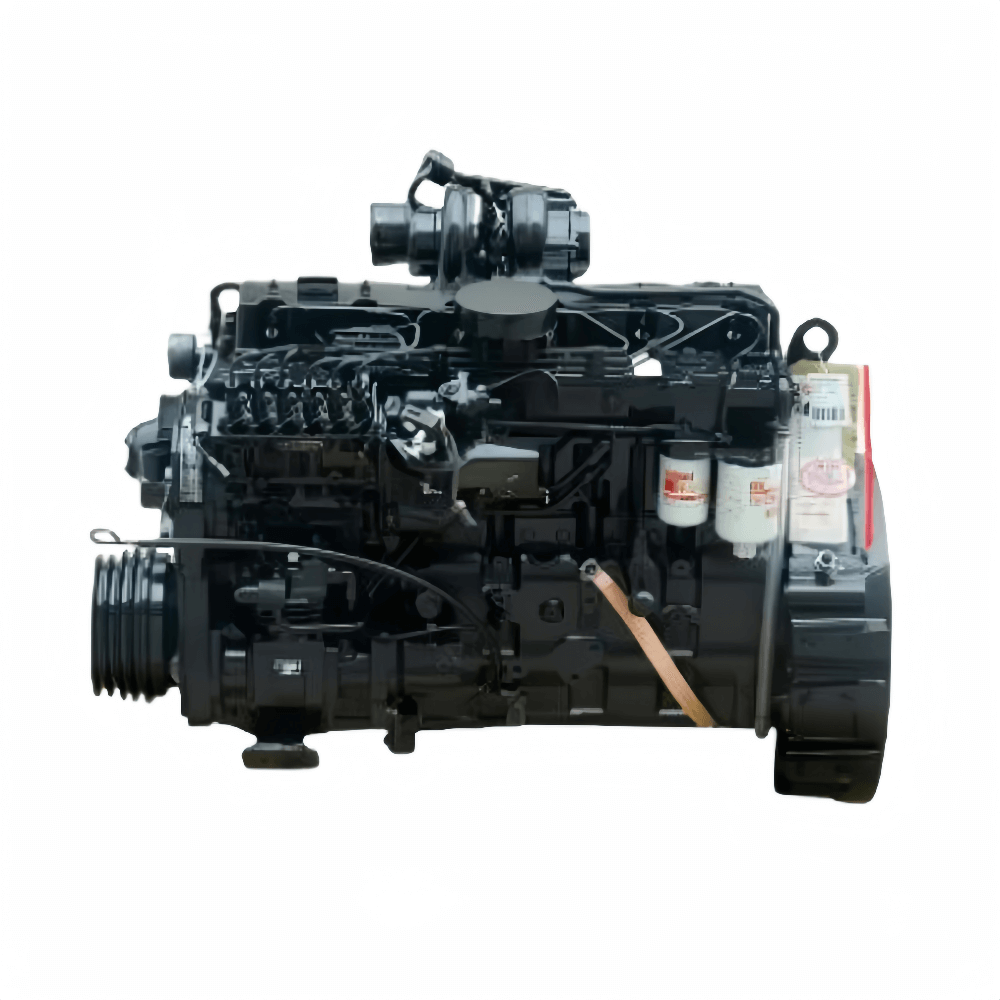

- Model: Cummins C300-33 221KW 300HP Vehicle Diesel Engine
- Type: 6 Cylinders in Line
- Displacement: 8.3L
- Bore * Stroke: 114 * 135
- Net Weight (with flywheel & alternator): 636 Kg
- Overall Dimension: 1180mm*920mm*1280mm
- Manufacture Plant: Dongfeng Cummins Plant
Performance Data
- Rated Power/Speed: 221 kW/300HP
- Rated Speed: 2200 rpm
- Max Torque/Speed: 1125 N.m @ 1200 rpm
- Max. No-load Governed Speed: 2500 rpm
- Idle-Speed: 750±100 rpm
- Fuel Consumption @ Rated Power: 229g/Kw.h
- Max Continuous Running Altitude: 2000 m
Technical Specification
- Certification: Euro II
- Aspiration: Turbocharged & Air-Air Intercooled
- Fuel System: BOSCH P7100 Pump
- Compression Radio: 17.5:1
- Electrical System (Starter Motor/Alternator): 12V (500A)/24V (250A)
- Lowest Starting Temp Without auxiliary system: -10℃/-25℃
- Engine Cooling Fluid Volume: 12.3 L
- Cooling Method: Water Cooled
