General Information

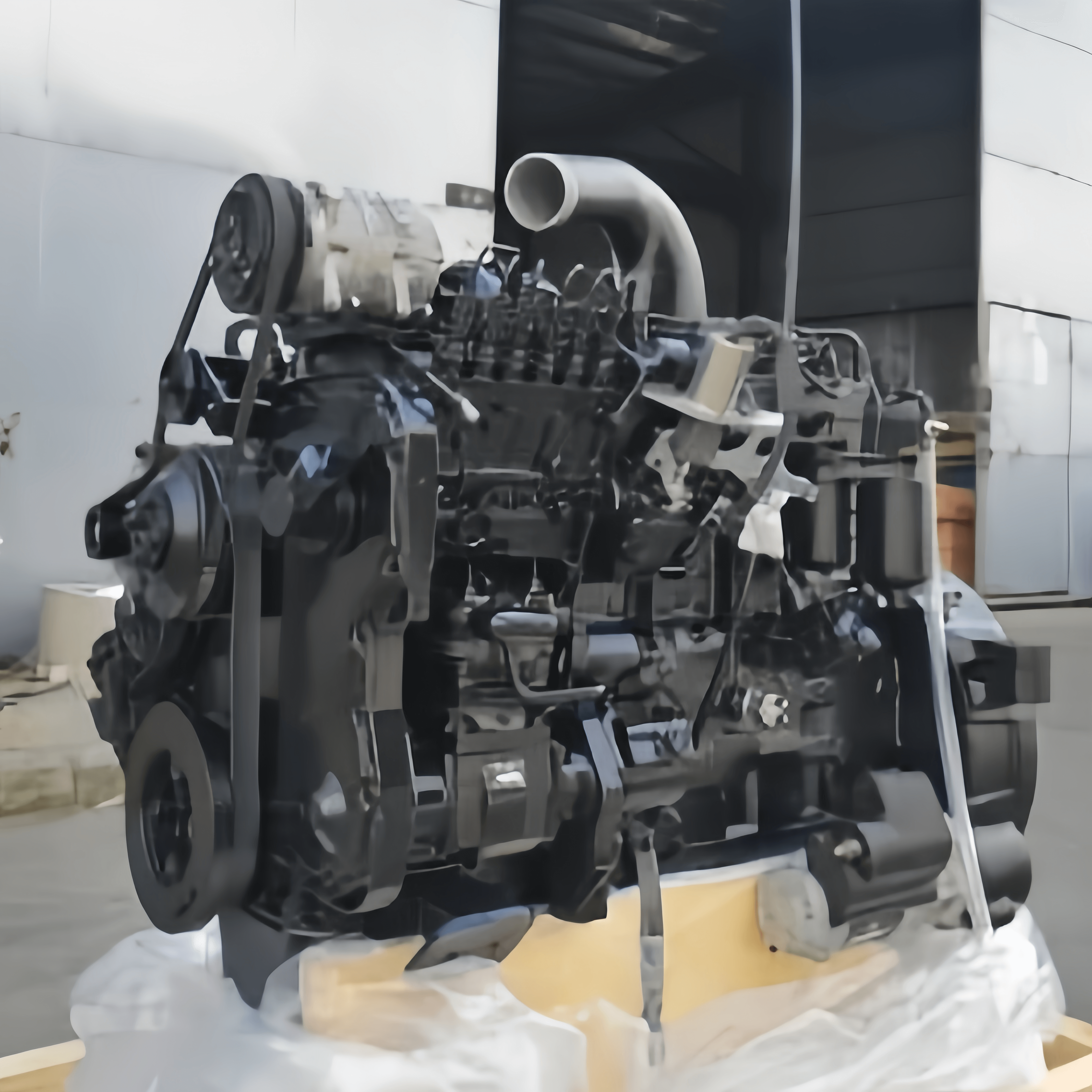

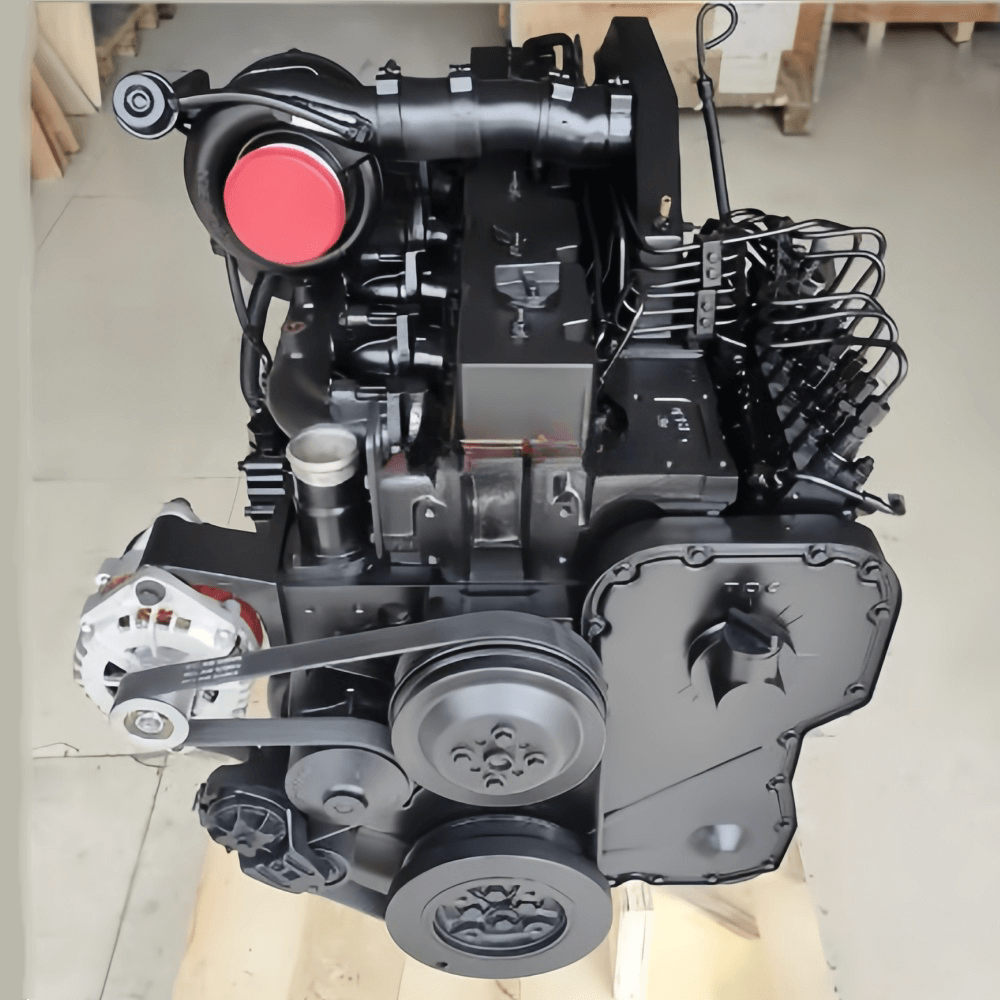

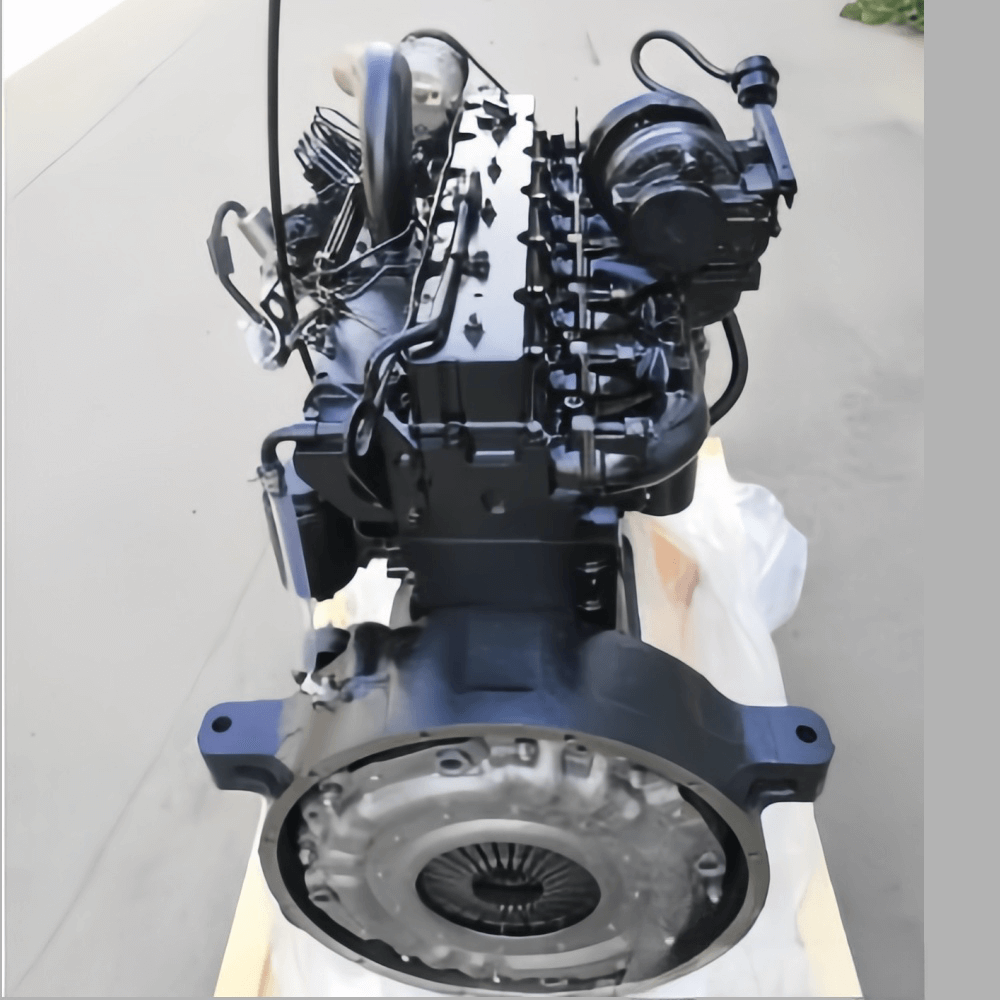

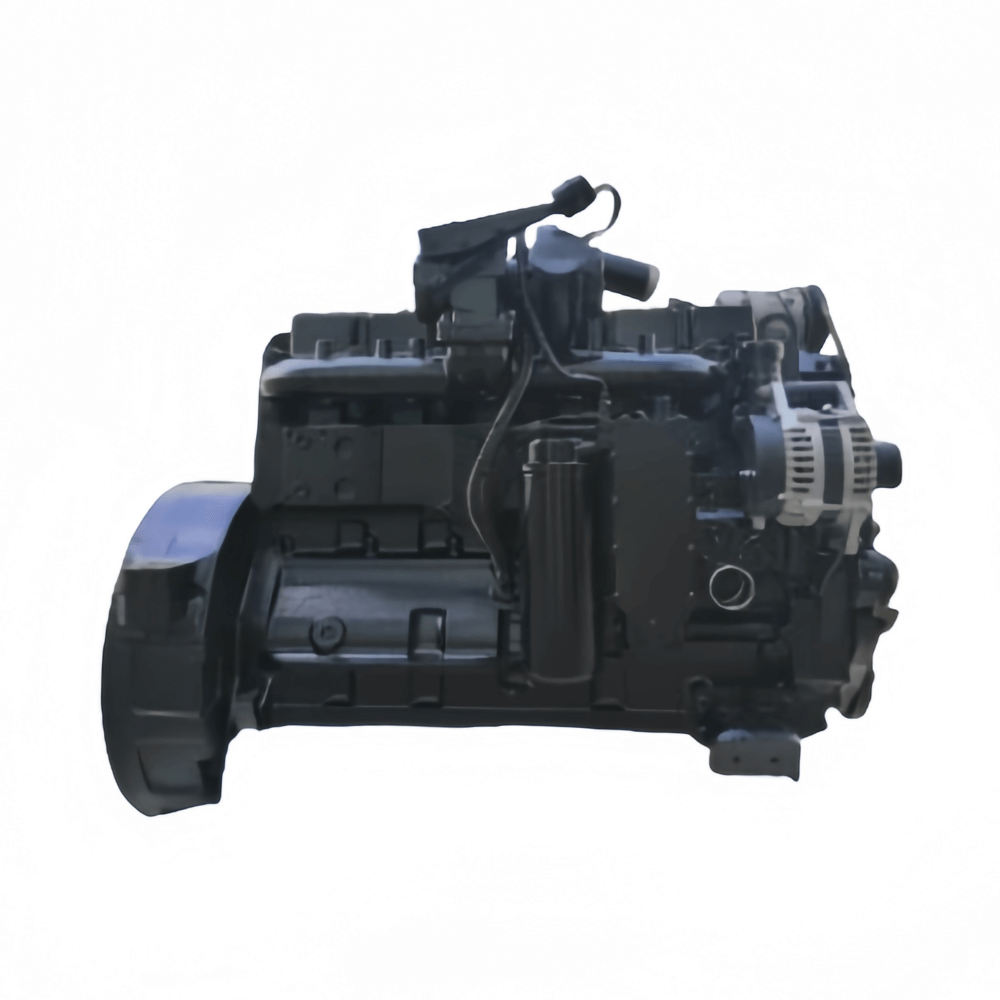

- Model: Cummins C245-33 180KW 245HP Vehicle Diesel Engine
- Type: 6 Cylinders in Line
- Displacement: 8.3L
- Bore * Stroke: 114 * 135
- Engine Configuretion: D413056BX03
- Net Weight (with flywheel & alternator): 747 Kg
- Overall Dimension: 1180mm*920mm*1280mm
- Manufacture Plant: Dongfeng Cummins Plant
Performance Data
- Rated Power/Speed: 180 kW/245HP
- Rated Speed: 2200 rpm
- Max Torque/Speed: 1025 N.m @ 1400 rpm
- Max. No-load Governed Speed: 2500 rpm
- Idle-Speed: 750±100 rpm
- Fuel Consumption @ Rated Power: 239g/Kw.h
- Max Continuous Running Altitude: 3000 m
Technical Specification
- Certification: Euro III
- Aspiration: Turbocharged & Air-Air Intercooled
- Fuel System: Bosch P7100 Pump/RQV-K Governor
- Compression Radio: 18:1
- Electrical System (Starter Motor/Alternator): 12V (500A)/24V (250A)
- Lowest Starting Temp Without auxiliary system: -10℃/-25℃
- Engine Cooling Fluid Volume: 12.3 L
- Cooling Method: Water Cooled
