General Information

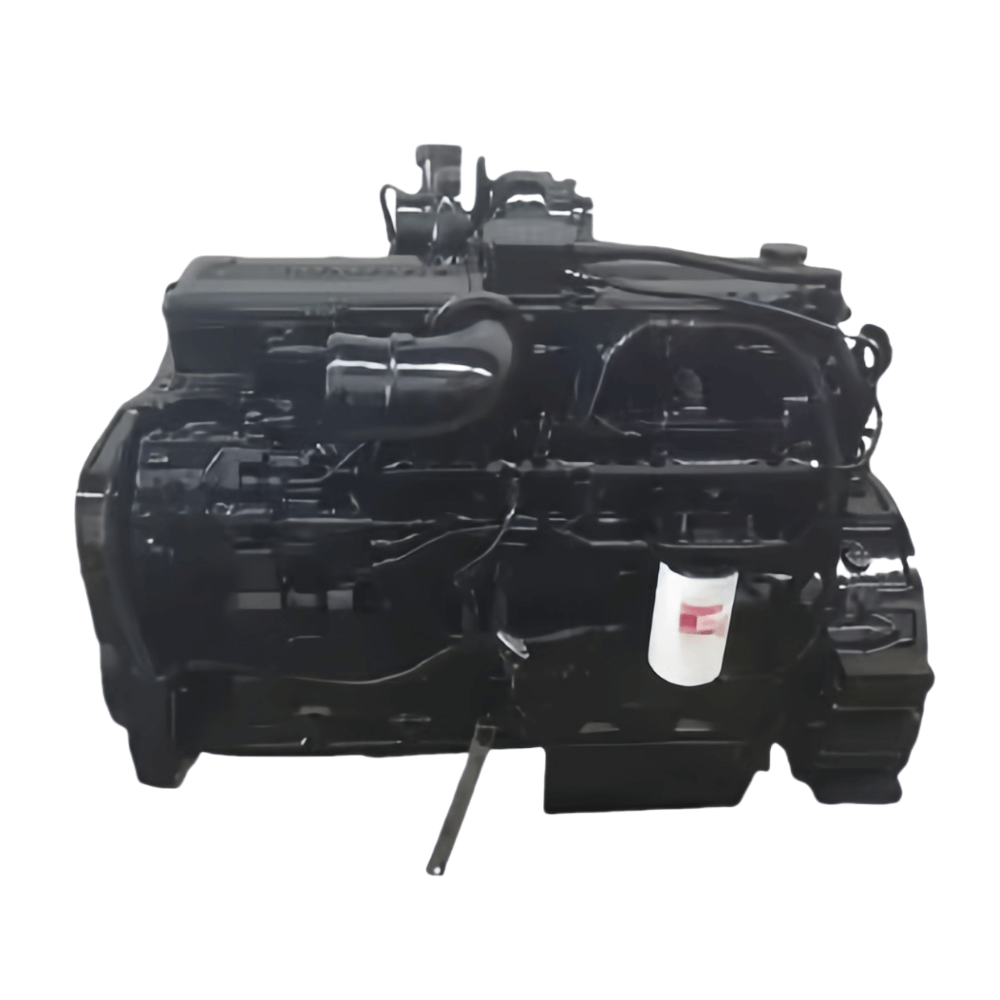

- Model: Cummins C230-33 162KW 220HP Vehicle Diesel Engine
- Type: 6 Cylinders in Line
- Displacement: 8.3L
- Bore * Stroke: 114 * 135
- Engine Configuretion: D413057BX03
- Net Weight (with flywheel & alternator): 604 Kg
- Overall Dimension: 1180mm*920mm*1280
- Manufacture Plant: Dongfeng Cummins Plant
Performance Data
- Rated Power/Speed: 162 kW/220HP
- Rated Speed: 2400 rpm
- Max Torque/Speed: 410 N.m @ 1500 rpm
- Max. No-load Governed Speed: 2720 rpm
- Idle-Speed: 800 rpm
- Fuel Consumption @ Rated Power: 242g/Kw.h
- Max Continuous Running Altitude: 3000 m
Technical Specification
- Certification: Euro II
- Aspiration: Turbocharged & Intercooled
- Fuel System:BYC PB Pump/R801 Governor
- Compression Radio: 17.3:1
- Electrical System (Starter Motor/Alternator): 12V (500A)/24V (250A)
- Lowest Starting Temp Without auxiliary system: -10℃/-25℃
- Engine Cooling Fluid Volume: 12.3 L
- Cooling Method: Water Cooled
