General Information

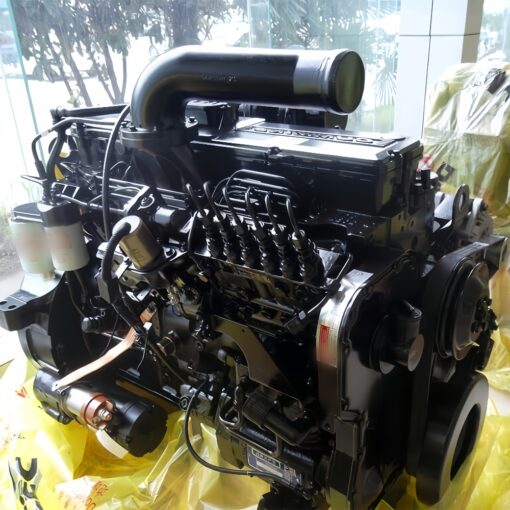

- Model: Cummins 6L 199KW 270HP Vehicle Diesel Engine
- Type: 6 Cylinders in Line
- Displacement: 8.9 L
- Bore * Stroke: 114 * 145
- Net Weight (with flywheel & alternator): 650 Kg
- Overall Dimension: 1149mm*799mm*1022mm
- Manufacture Plant: Dongfeng Cummins Plant
Performance Data
- Rated Power/Speed: 199 kW/270HP
- Rated Speed: 2200 rpm
- Max Torque/Speed: 1150 N.m @ 1400 rpm
- Max. No-load Governed Speed: 2500 rpm
- Idle-Speed: 700±100 rpm
- Fuel Consumption @ Rated Power: 225g/Kw.h
- Max Continuous Running Altitude: 3000 m
Technical Specification
- Certification: Euro II
- Aspiration: Turbocharged & Air-Air Intercooled
- Fuel System: BOSCH P7100 Pump
- Compression Radio: 16.6:1
- Electrical System (Starter Motor/Alternator): 12V(500A)/24V (250A)
- Lowest Starting Temp Without auxiliary system: -10℃/-25℃
- Engine Cooling Fluid Volume: 11.1 L
- Cooling Method: Water Cooled
