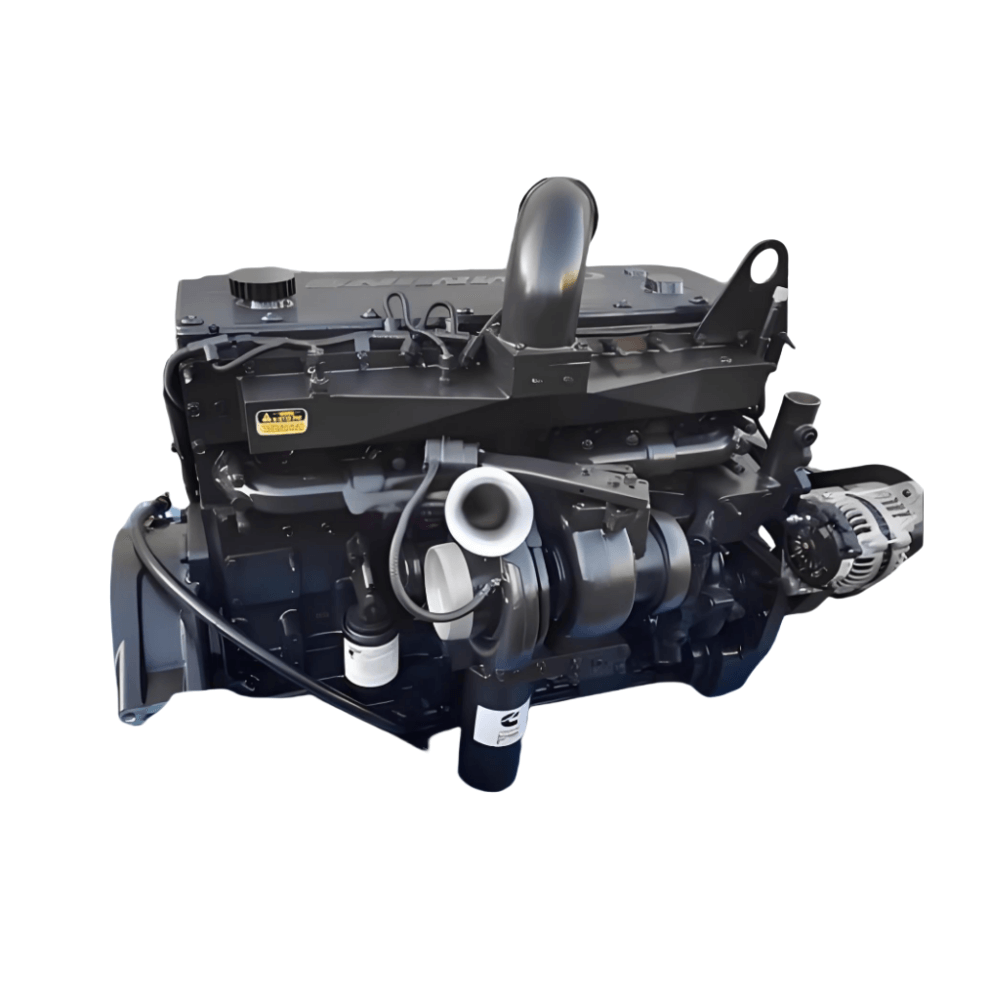

Model: QSM11-400
Type: 6 Cylinders in Line
Displacement: 10.8 L
Bore * Stroke: 125 * 147
Engine Configuration Number: D353020CX03
Net Weight (with flywheel & alternator): 984 Kg
Overall Dimension: 1306mm*914mm*1280mm
Manufacture Plant: Chongqing Cummins Plant
Rated Power/Speed: 298 kW/400HP
Rated Speed: 2100/1800 rpm
Max Torque/Speed (2100): 1898 N.m @ 1400 rpm
Max. Torque/Speed (1800): 1898 N.m @ 1400 rpm
Fuel Consumption @ Rated Power: 217 g/kw.h
Certification: Tier III
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Common Rail High Pressure Injection
Compression Radio: 16.3:1
Control System: Full Electronic Control System(ECM)
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃/-25℃
Engine Cooling Fluid Volume: 9.5 L
Cooling Method: Water Cooled
