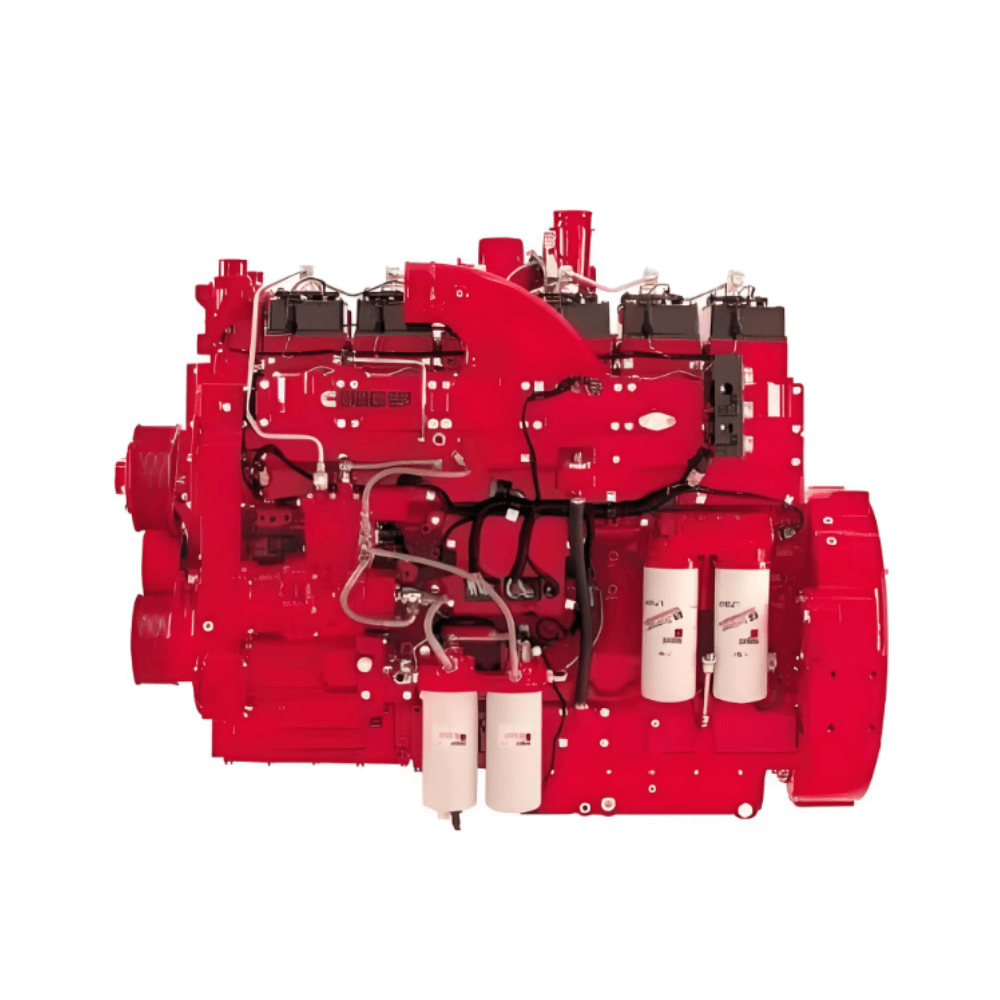

QSKTAA19-C755 – General Information
Model: QSKTAA19-C755
Type: 6 Cylinders in Line
Displacement: 19 L
Bore * Stroke: 159 * 159
Net Weight (with flywheel & alternator): 2073 Kg
Overall Dimension: 2150mm*966mm*1704mm
Manufacture Plant: Chongqing Cummins Plant
QSKTAA19-C755 – Performance Data
Rated Power/Speed: 563 kW/755HP
Rated Speed: 1800 rpm
Max Torque/Speed: 2730 N.m @ 1800 rpm
Max. Continuous Running Altitude: 2000 m
Fuel Consumption @ Rated Power: 210g/Kw.h
QSKTAA19-C755 – Technical Specification
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection PT Pump
Compression Radio: 13.9:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Engine Cooling Fluid Volume: 30 L
Cooling Method: Water Cooled
