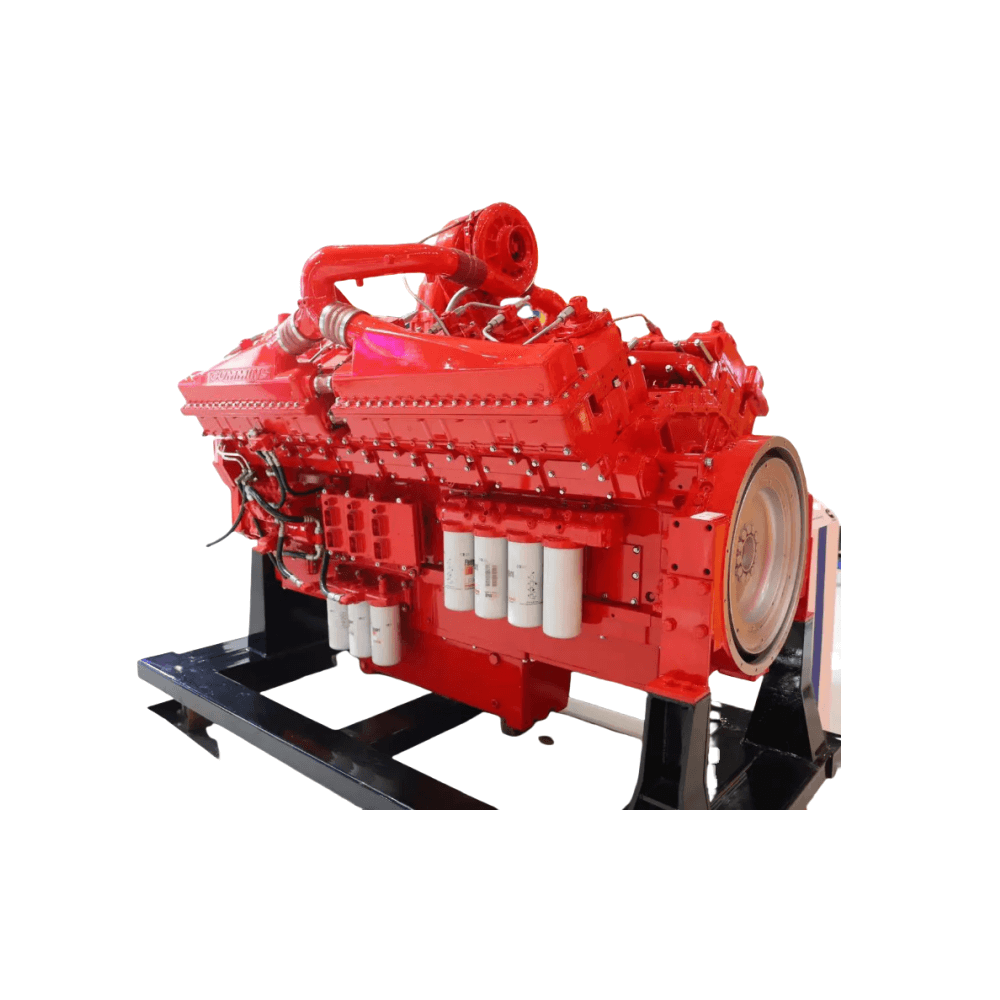

QSK50-C1600 – General Information
Model: QSK50-C1600
Type: 16 Cylinders, V Type
Displacement: 50.3 L
Bore * Stroke: 159 * 159
Net Weight (with flywheel & alternator): 5970 Kg
Overall Dimension: N/A
Manufacture Plant: Chongqing Cummins Plant
QSK50-C1600 – Performance Data
Rated Power: 1193 kW/1600HP
Rated Speed: 1800 rpm
Max Torque/Speed: 6835 N.m @ 1500 rpm
Max. Continuous Running Altitude: N/A
Min Idle Speed: 600 rpm
Fuel Consumption @ Rated Power: 204-221 g/kw.h
QSK50-C1600 – Technical Specification
Emission Certification: U.S. EPA Tier 2
Aspiration: Turbocharger & Aftercooled
Fuel System: Cummins MCRS
Engine type: Electronic control
Electrical System (Starter Motor/Alternator): 24V
Lowest Starting Temp Without auxiliary system: N/A/-18℃
Engine Cooling Fluid Volume: 140 L
Cooling Method: Water Cooled
