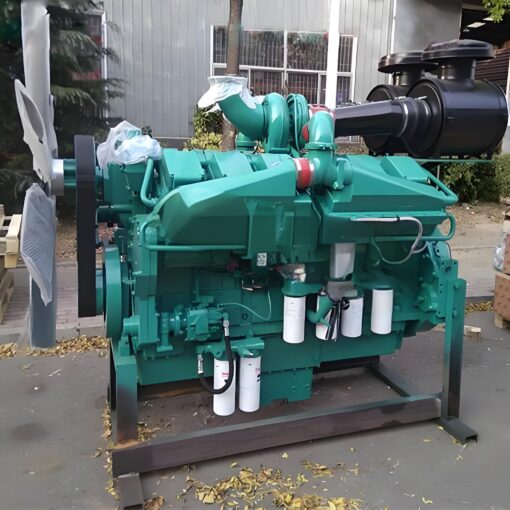

QSK38-G1 – General Information
Model: QSK38-G1
Type: 12 Cylinders
Displacement: 37.7 L
Bore * Stroke: 159 * 159
Net Weight: 3825 Kg
Overall Dimension: 2081mm*1492mm*1866mm
Manufacture Plant: Chongqing Cummins Plant
QSK38-G1 – Performance Data
Rated Power/Speed: 876 kW @ 1500 rpm
Standby Output/Speed: 970 kW @ 1500 rpm
Low Idle Speed: 700-800 rpm
Fuel Consumption: 56.0 g/kWh
QSK38-G1 – Technical Specification
Aspiration: Turbocharged, After-cooled
Fuel System: Cummins Direct Injection MCRS
Electrical System (Starter Motor/Alternator): 24V
Cooling System Design: 2 pump- 2 loop
