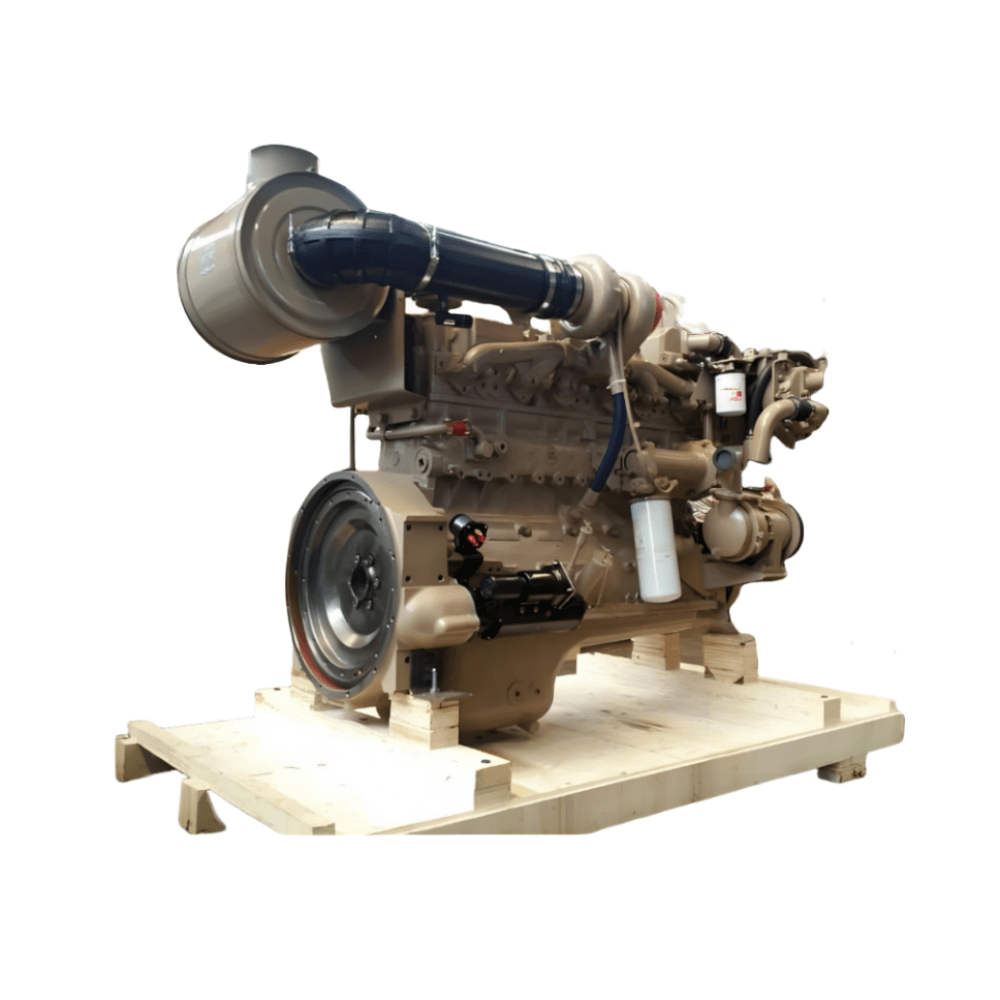

NTA855-P470 – General Information
Model: NTA855-P470
Type: 6 Cylinders in Line
Displacement: 14 L
Bore * Stroke: 140 * 152
Engine Configuration Number: D093517CX02
Net Weight (with flywheel & alternator): 1199 Kg
Overall Dimension: 1389mm*914mm*1298mm
Manufacture Plant: Chongqing Cummins Plant
NTA855-P470 – Performance Data
Rated Power/Speed: 315 kW/470HP
Rated Speed: 1500 rpm
Idle Speed: 575-650 rpm
Torque/Rated Speed: 1647 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 216g/Kw.h
NTA855-P470 – Technical Specification
Certification: Euro II
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Direct Injection PT Pump, STC
Compression Radio: 14.0:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃/-25℃
Engine Cooling Fluid Volume: 20.8 L
Cooling Method: Water Cooled
