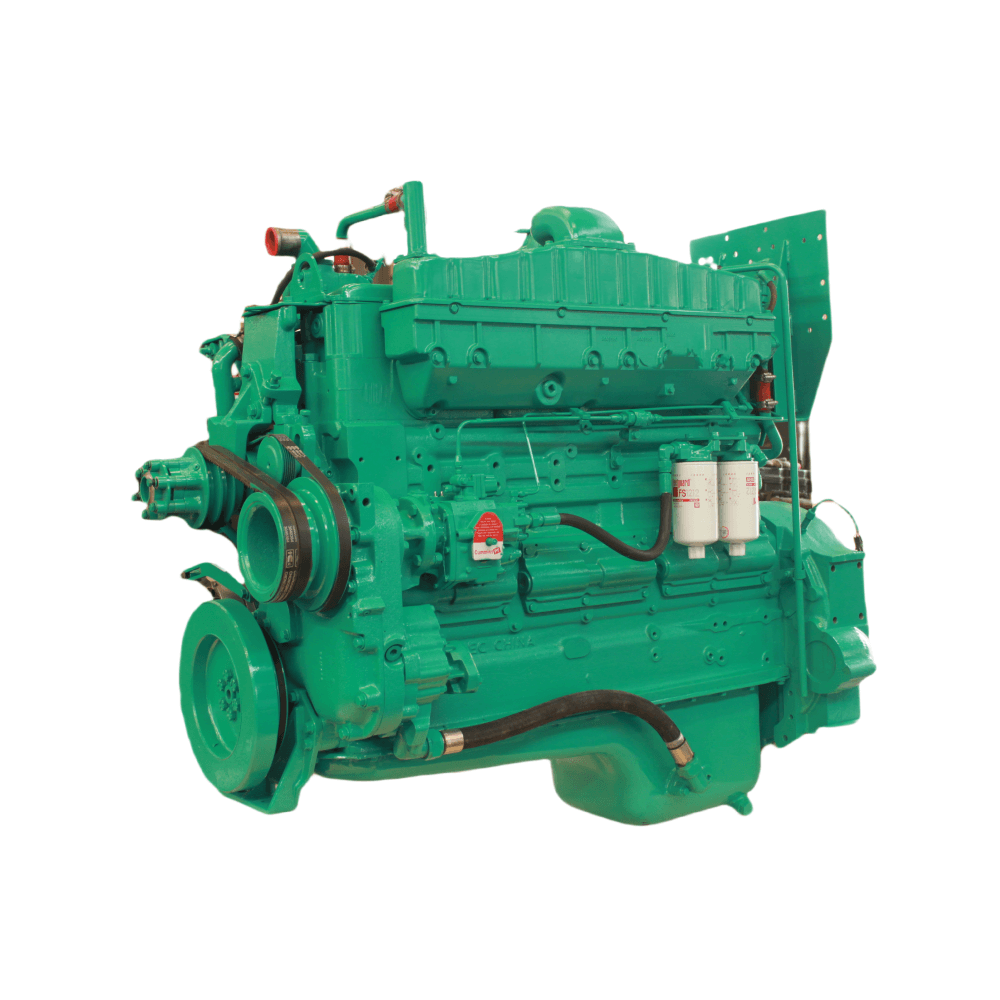

NTA855-G3 – General Information
Model: NTA855-G3
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 14L
Bore * Stroke: 140 * 152
Net Weight: 1380 Kg
Overall Dimension: 1980mm*900mm*1600mm
Engine Configuration No.: D093580DX02
Manufacture Plant: Chongqing Cummins Plant
NTA855-G3 – Performance Data
Rated Power/Speed: 358 kW/480HP @ 1800 rpm
Standby Output/Speed: 399 kW/535HP @ 1800 rpm
Torque @Rated/Standby Output: 1703/1896 N.m @ 1800 rpm
Low Idle Speed: 575-675 rpm
Fuel Consumption @ Rated Power: 72 L/Kw.h
NTA855-G3 – Technical Specification
Aspiration: Turbocharged
Fuel System: Cummins PT Pump, Direct Injection
Governor Type: Mechanical Control
Compression Ratio: 14:1
Electrical System (Starter Motor/Alternator): 24V/900A
Lowest Starting Temp (Without auxiliary system): -12℃
Coolant Volume (Engine Only): 20.8 L
Cooling Method: Water Cooled
