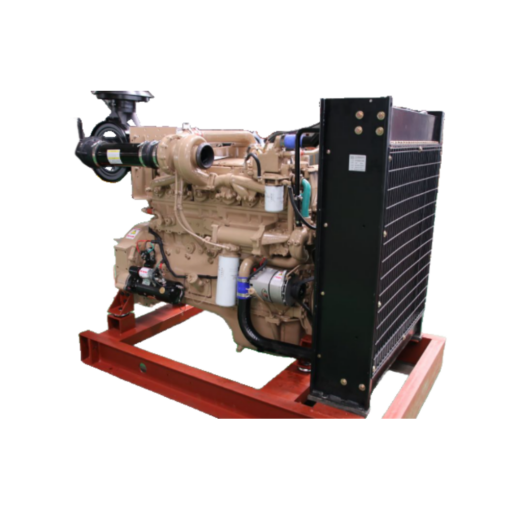

Model: NTA855-C360
Type: 6 Cylinders in Line
Displacement: 14 L
Bore * Stroke: 140 * 152
Engine Configuration Number: D093437CX02
Net Weight (with flywheel & alternator): 1348 Kg
Overall Dimension: 1389mm*914mm*1298mm
Manufacture Plant: Chongqing Cummins Plant
Rated Power/Speed: 269 kW/360HP
Rated Speed: 2100 rpm
Max Torque/Speed: 1464 N.m @ 1400 rpm
Idle Speed: 600 rpm
Output/Max Torque: 215 kW/360HP @ 1400 rpm
Torque/Rated Speed: 1223 N.m @ 2100 rpm
Fuel Consumption @ Rated Power: 213g/Kw.h
Certification: Euro II
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Direct Injection PT Pump, STC
Compression Radio: 14.5:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃/-25℃
Engine Cooling Fluid Volume: 20.8 L
Cooling Method: Water Cooled
