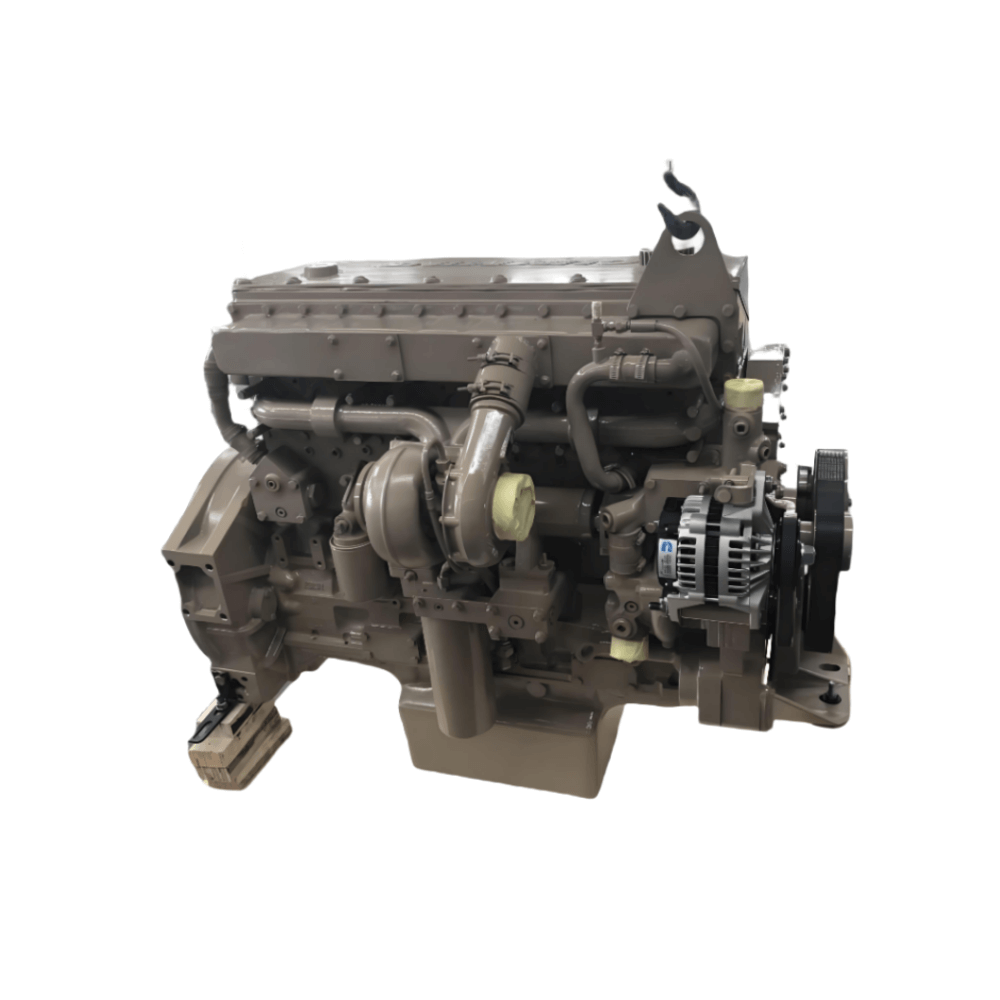

Model: M11-C270
Type: 6 Cylinders in Line
Displacement: 10.8 L
Bore * Stroke: 125 * 147
Engine Configuration Number: D353005CX03
Net Weight (with flywheel & alternator): 980 Kg
Overall Dimension: 1450mm*950mm*1010mm
Manufacture Plant: Chongqing Cummins Plant
Rated Power/Speed: 201 kW/270HP
Rated Speed: 2100 rpm
Max Torque/Speed (2100): 1288 N.m @ 1300 rpm
Max Torque/Speed: 1248 N.m @ 1300 rpm
Max. Continuous Running Altitude: 3048 m
Idle Speed: 675-750 rpm
Fuel Consumption @ Rated Power: 64.4 L/hr
Max. No-load Speed: 2450 rpm
Certification: Tier 1
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection PT Pump, STC
Compression Radio: 16.1:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Engine Cooling Fluid Volume: 9.5 L
Cooling Method: Water Cooled
