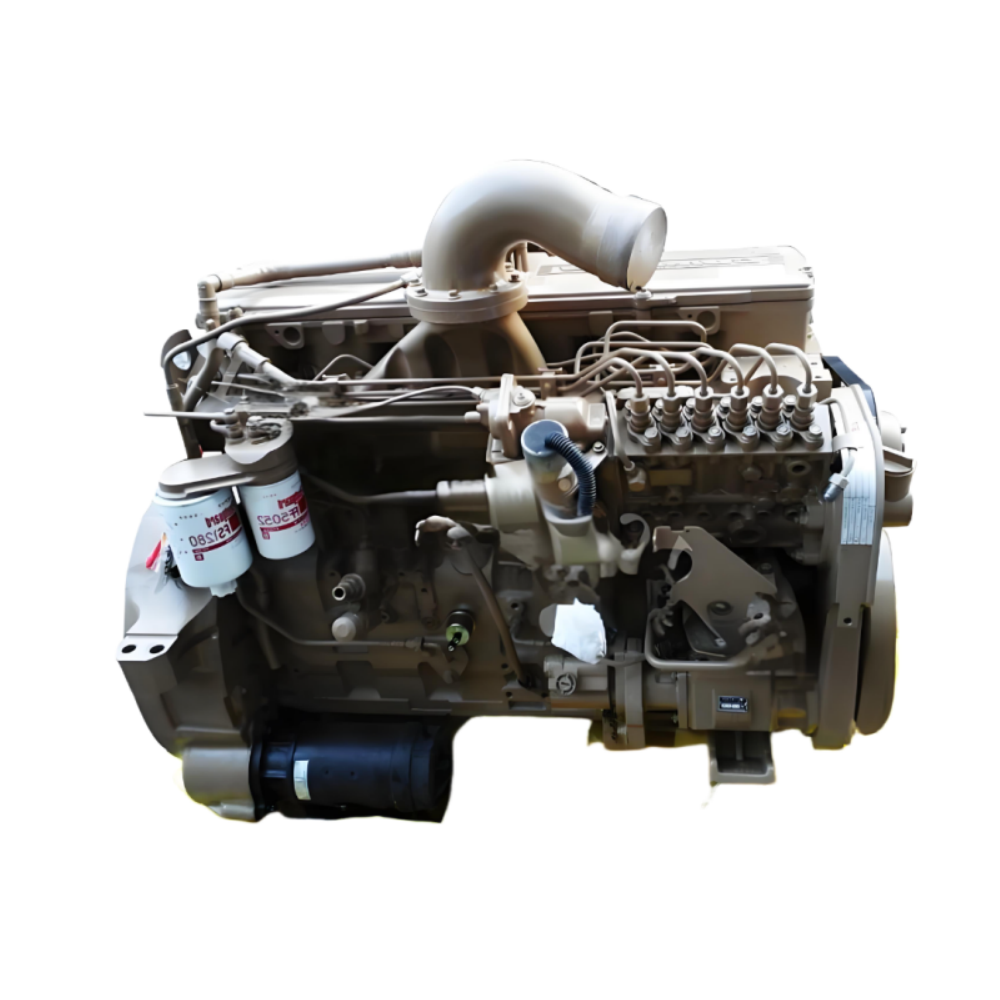

Model: L325-20
Type: 6 Cylinders in Line
Displacement: 8.9 L
Bore * Stroke: 114 * 145
Net Weight (with flywheel & alternator): 650 Kg
Overall Dimension: 1149mm*799mm*1022mm
Manufacture Plant: Dongfeng Cummins Plant
Rated Power/Speed: 239 kW/325HP
Rated Speed: 2200 rpm
Max Torque/Speed: 1230 N.m @ 1400 rpm
Max. No-load Governed Speed: 2500 rpm
Idle-Speed: 700±100 rpm
Fuel Consumption @ Rated Power: 224g/Kw.h
Max Continuous Running Altitude: 3000 m
Certification: Euro II
Aspiration: Turbocharged & Air-Air Intercooled
Fuel System: BOSCH P7100 Pump/RQV-K Governor
Compression Radio: 16.6:1
Electrical System (Starter Motor/Alternator): 12V(500A)/24V (250A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Engine Cooling Fluid Volume: 11.1 L
Cooling Method: Water Cooled
