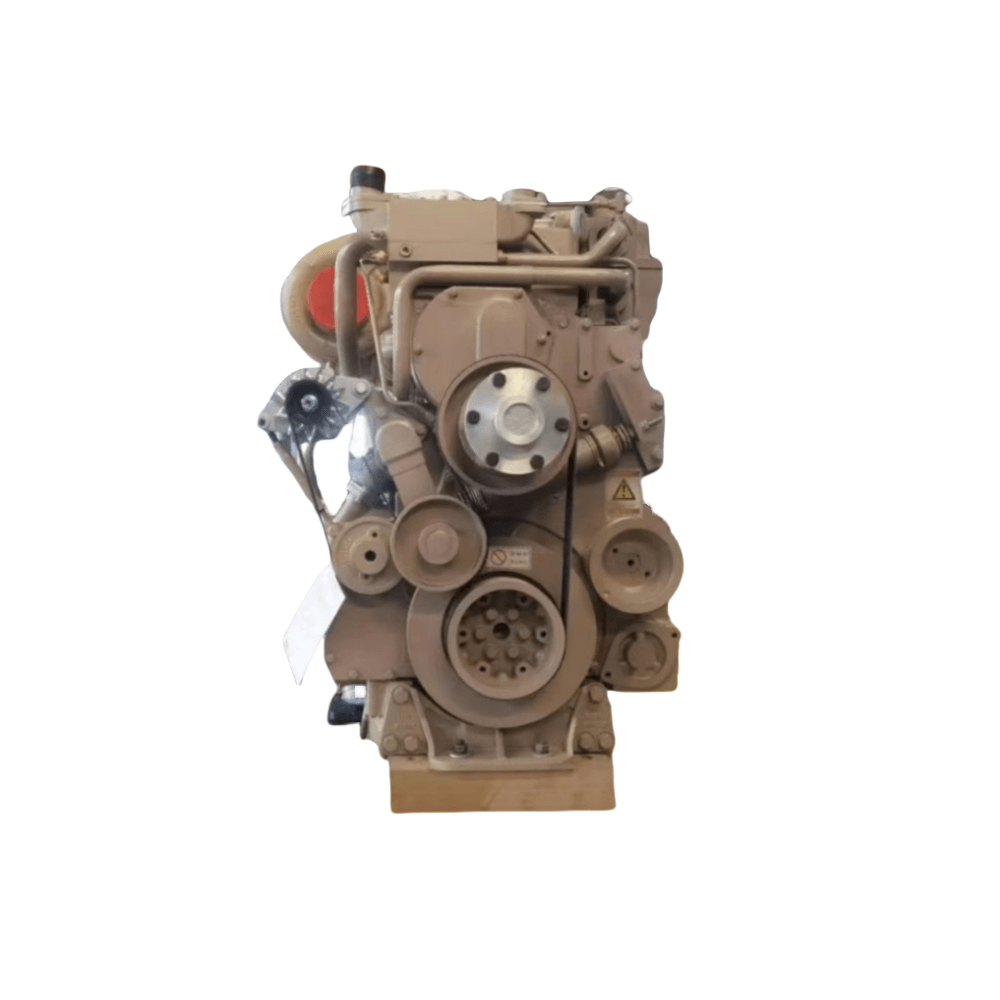

KTAA19-C700 – General Information
Model: KTAA19-C700
Type: 6 Cylinders in Line
Displacement: 19 L
Bore * Stroke: 159 * 159
Engine Configuration Number: D193077CX02
Net Weight (with flywheel & alternator): 2073 Kg
Overall Dimension: 2150mm*966mm*1704mm
Manufacture Plant: Chongqing Cummins Plant
KTAA19-C700 – Performance Data
Rated Power/Speed: 522 kW/700HP
Rated Speed: 2100 rpm
Max Torque/Speed: 2731 N.m @ 1300 rpm
Max. Continuous Running Altitude: 2000 m
Min Low Idle Speed: 725 rpm
Fuel Consumption @ Rated Power: 210g/Kw.h
KTAA19-C700 – Technical Specification
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection PT Pump
Compression Radio: 13.9:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Engine Cooling Fluid Volume: Fluid Cooling
Cooling Method: Water Cooled
