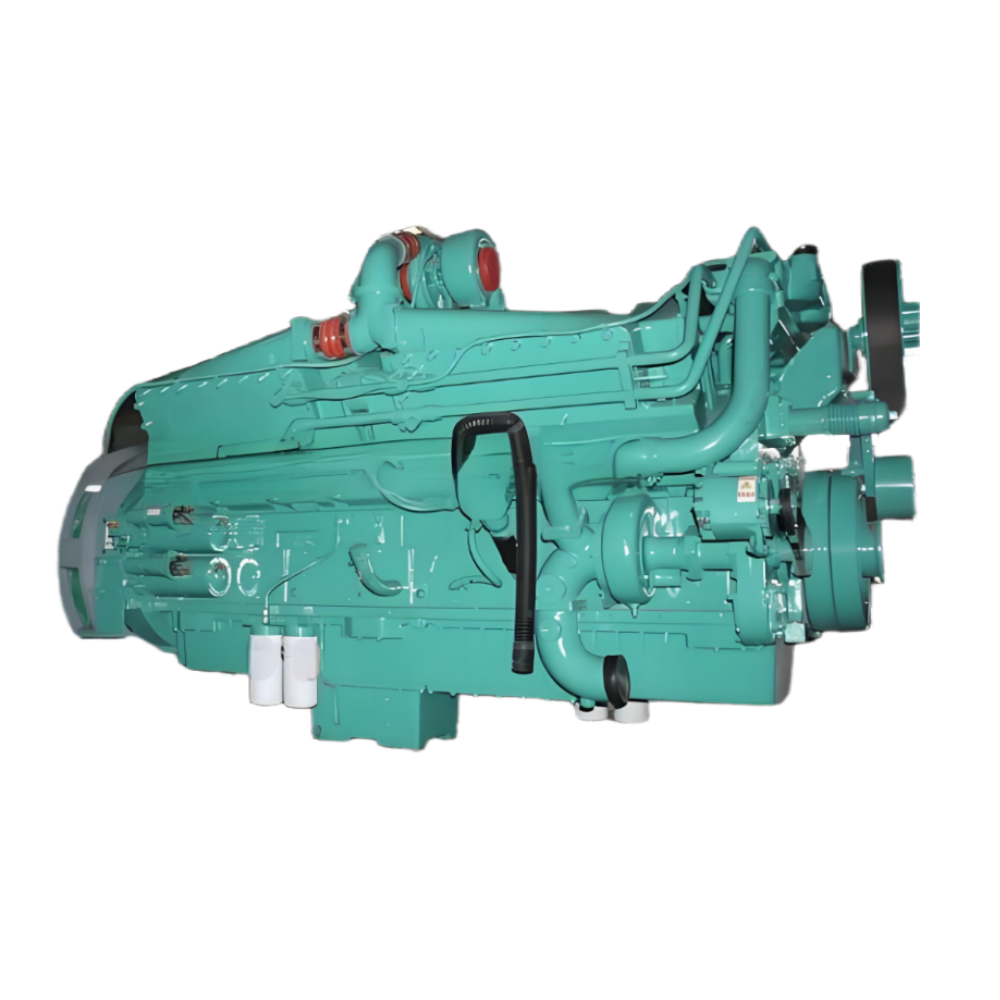

KTA50-G15 – General Information
Model: KTA50-G15
Type: 16 Cylinders, V Type
Displacement: 50.3 L
Bore * Stroke: 159 * 159
Net Weight: 13795 Kg
Overall Dimension: 6100mm*2138mm*2557mm
Manufacture Plant: Chongqing Cummins Plant
KTA50-G15 – Performance Data
Rated Power/Speed: 1400 kW @ 1500 rpm
Standby Output/Speed: 1500 kW @ 1500 rpm
Low Idle Speed: 700-800 rpm
Fuel Consumption @ Rated Power: 460 L/H
KTA50-G15 – Technical Specification
Aspiration: Turbocharged/Water-Air Intercooler
Compression Ratio: 13.9:1
Engine Exhaust Manifold: Optional for Wet Exhaust manifold Heat exchanger
Cooling Method: Water Radiator & Fan
