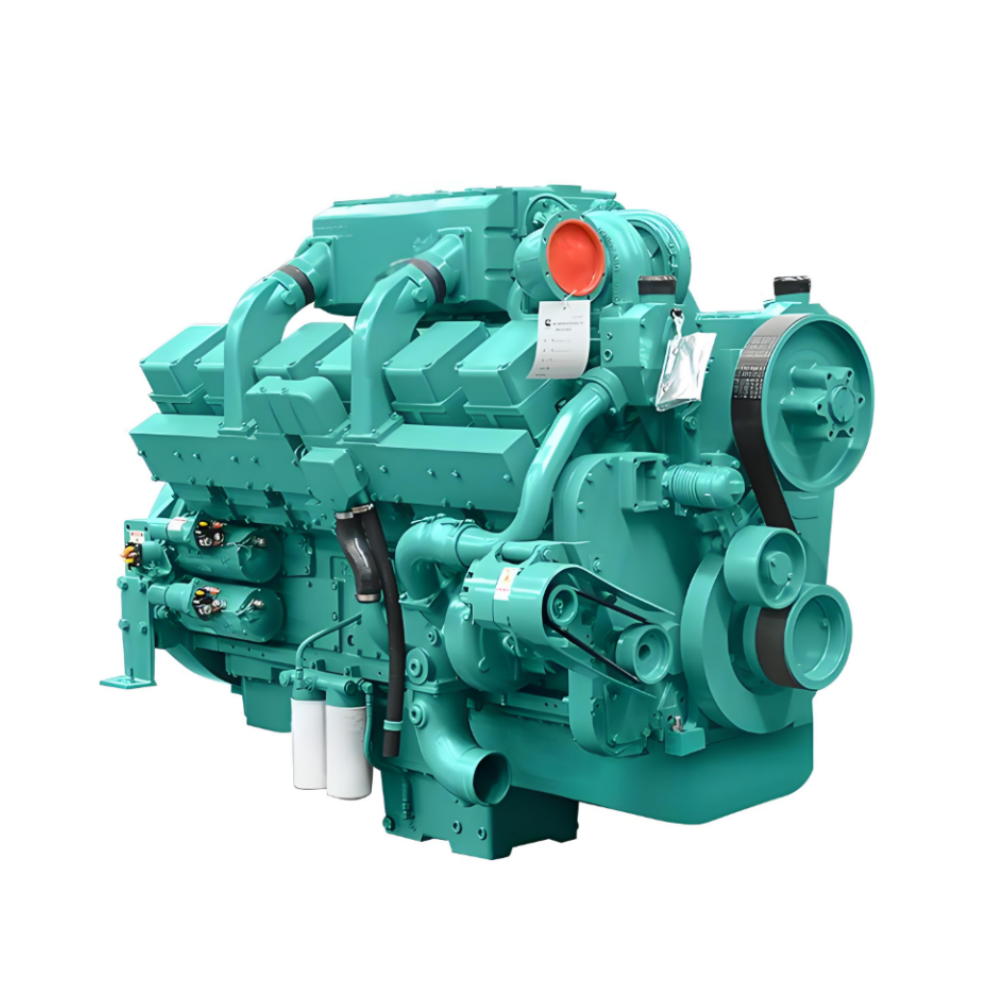

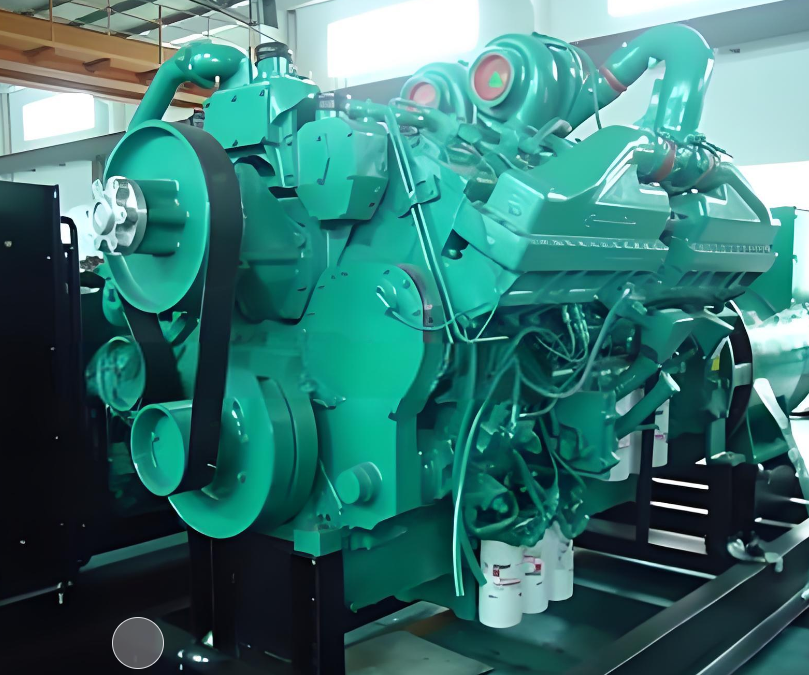

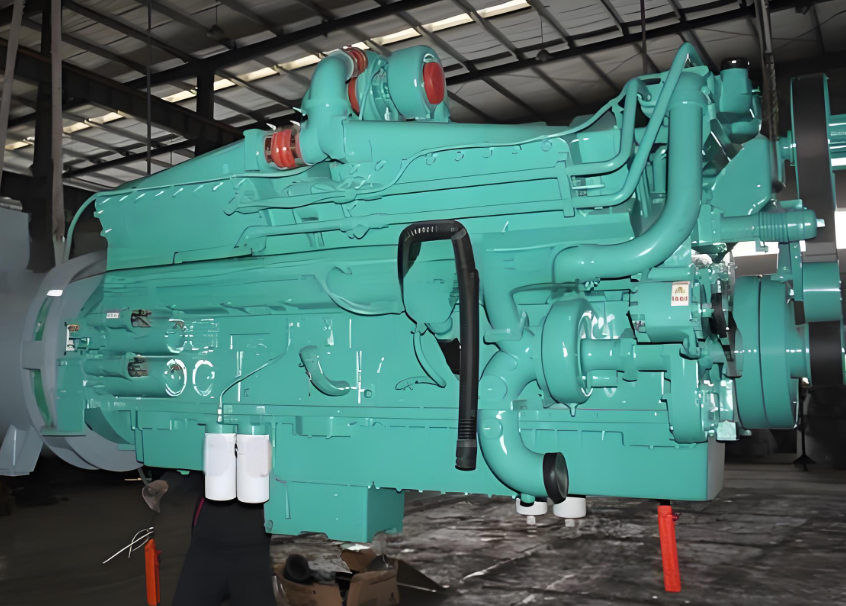

Model: KTA50-G8
Type: 16 Cylinders, 60° V Type, 4 Stroke Diesel
Displacement: 50.3 L
Bore * Stroke: 159 * 159
Net Weight: 5662 Kg
Overall Dimension: 2978mm*2080mm*1780mm
Engine Configuration No.: D283022DX02
Manufacture Plant: Chongqing Cummins Plant
Rated Power/Speed: 1200 kW/1608HP @ 1500 rpm
Standby Output/Speed: 1429 kW/1915HP @ 1500 rpm
Continuous Output/Speed: 1100 kW/1475HP @ 1500 rpm
Low Idle Speed: 725-775 rpm
Fuel Consumption @ Rated Power: 289 L/Kw.h
Aspiration: Turbocharged/Aftercooled
Fuel System: Cummins PT Pump, Direct Injection
Governor Type: Mechanical Control, ≤ 5%
Compression Ratio: 14.9:1
Electrical System (Starter Motor/Alternator): 24V
Lowest Starting Temp (Without auxiliary system): -12℃
Engine Exhaust Manifold: Dry Exhaust Manifold
Cooling Method: Water Cooled, 1 pump or 2 pumps/2 loops
