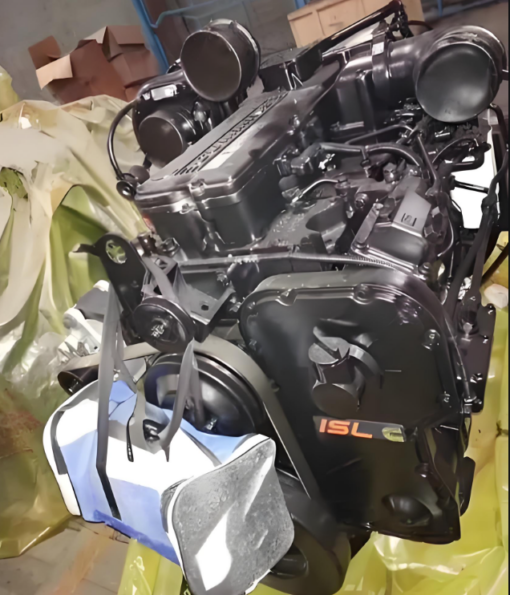

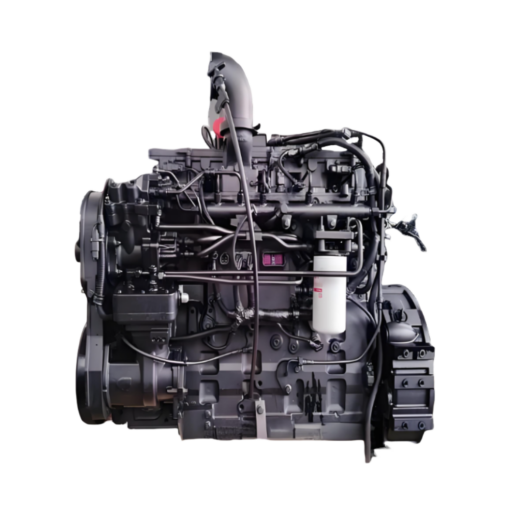

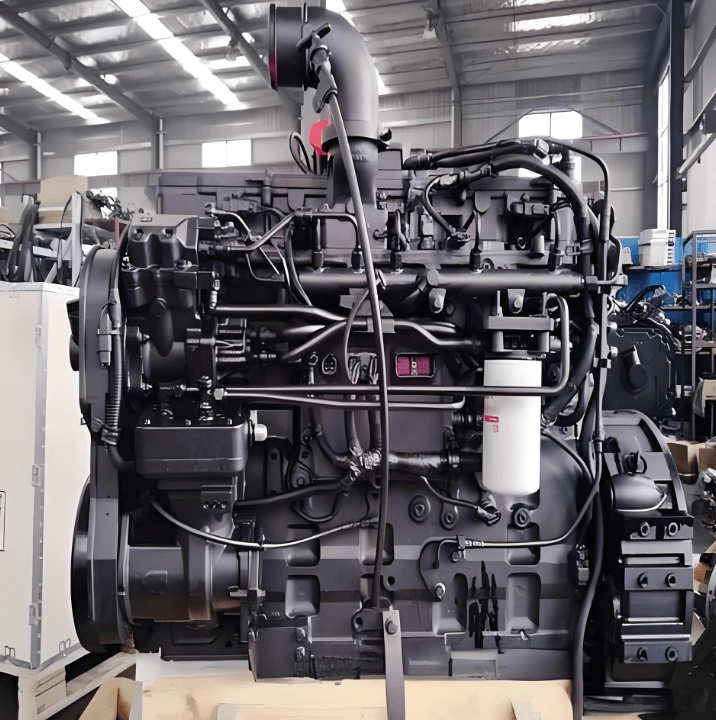

Model: ISLe340-30
Type: 6 Cylinders in Line
Displacement: 8.9 L
Bore * Stroke: 114 * 144.5
Net Weight (with flywheel & alternator): 706 Kg
Overall Dimension: 1147mm*767mm*1104mm
Manufacture Plant: Dongfeng Cummins Plant
Rated Power/Speed: 250 kW/340HP
Rated Speed: 2100 rpm
Max Torque/Speed: 1425 N.m @ 1100-1400 rpm
Max. No-load Governed Speed: 2330 rpm
Torque/Rated Speed: 1139 N.m @ 2100 rpm
Idle-Speed: 600-800 rpm
Fuel Consumption @ Rated Power: 210g/Kw.h
Max Continuous Running Altitude: 4500 m
Certification: Euro III
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Bosch Common rial (CCR)/ECM Governor
Compression Radio: 16.6:1
Electrical System (Starter Motor/Alternator): 24V (750A)
Lowest Starting Temp Without auxiliary system: -12℃/-33℃
Engine Cooling Fluid Volume: 11.1 L
Cooling Method: Water Cooled
