General Information

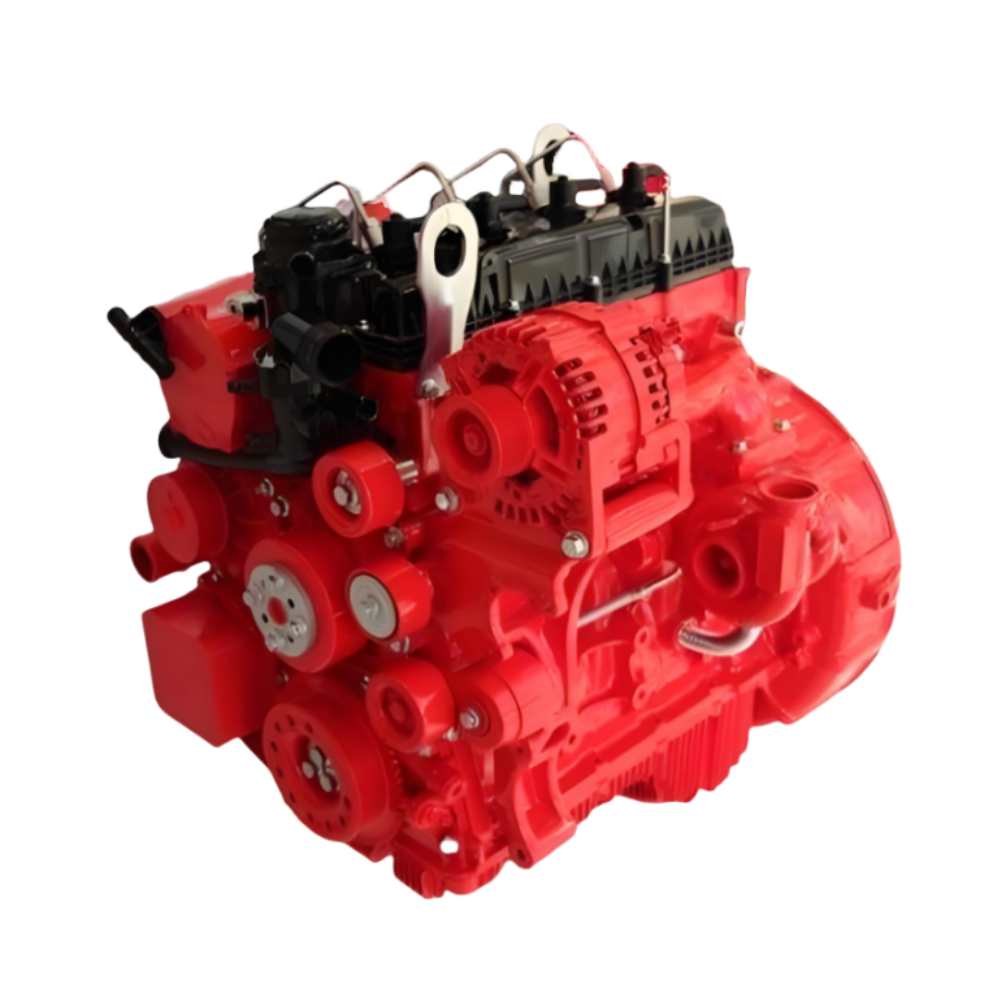

Model: ISF3.8s3168
Type: 4 Cylinders in Line
Displacement: 3.76 L
Bore * Stroke: 102 * 115
Net Weight (with flywheel & alternator): 335 Kg
Overall Dimension: 801mm*695mm*806mm
Manufacture Plant: Dongfeng Cummins Plant
Performance Data
Rated Power/Speed: 125 kW/168HP
Rated Speed: 2600 rpm
Max Torque/Speed: 600 N.m @ 1300-1700 rpm
Max. No-load Governed Speed: 2950 rpm
Idle-Speed: 750 rpm
Min. Fuel Consumption: 195g/Kw.h
Max Continuous Running Altitude: 2000 m
Technical Specification
Certification: Euro III
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Bosch Direct Injection/HPCR, SCR
Compression Radio: 17.2:1
Starting System: Electrical Starting Motor 24V
Starting Temp (with/without auxiliary system): -10℃/-25℃
Engine Cooling Fluid Volume: 11.1 L
Cooling Method: Water Cooled
