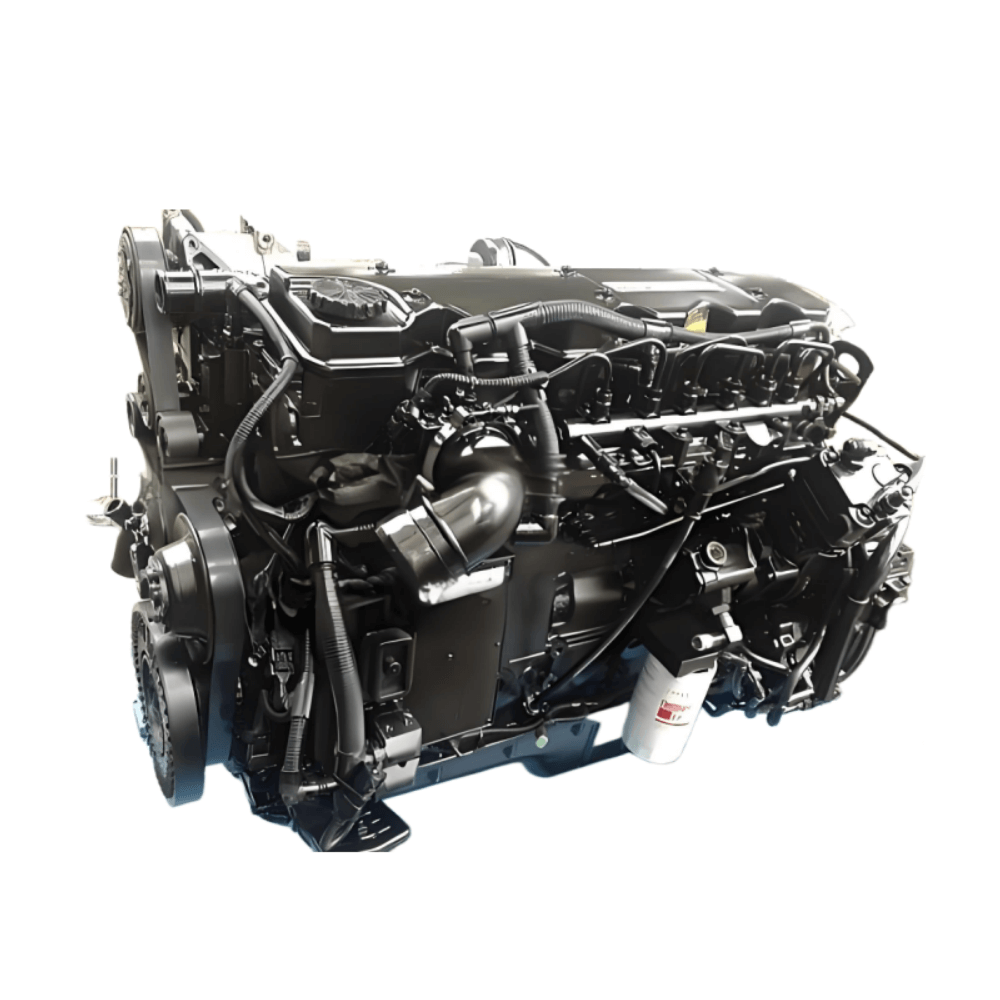

Model: ISDe185-30
Type: 4 Cylinders in Line
Displacement: 4.5 L
Bore * Stroke: 107 * 124
Net Weight (with flywheel & alternator): 3509 Kg
Overall Dimension: 901mm*723mm*815mm
Manufacture Plant: Dongfeng Cummins Plant
Rated Power/Speed: 136 kW/185HP
Rated Speed: 2500 rpm
Max Torque/Speed: 700 N.m @ 1200-1700 rpm
Max. No-load Governed Speed: 2850 rpm
Torque/Rated Speed: 520 N.m @ 2500 rpm
Idle-Speed: 600-800 rpm
Fuel Consumption @ Rated Power: 195g/Kw.h
Max Continuous Running Altitude: 3000 m
Certification: Euro III
Aspiration: Turbocharged & Charge Air Cooled
Fuel System: Bosch Direct Injection (HPCR)
Compression Radio: 17.3:1
Electrical System (Starter Motor/Alternator): 24V (750A)
Lowest Starting Temp Without auxiliary system: -12℃/-25℃
Engine Cooling Fluid Volume: 9.4 L
Cooling Method: Water Cooled
