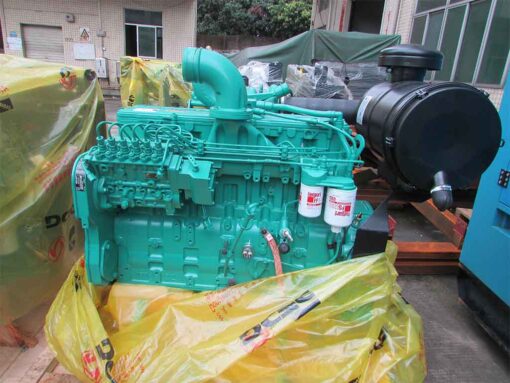

| 6LTAA9.5-G3 250KW 335HP Generator Engine – General Information |
| Model: 6LTAA9.5-G3 |
| Type: 6 Cylinders in Line |
| Displacement: 9.5L |
| Bore * Stroke: 116 * 148 |
| Net Weight (with flywheel & alternator): 945 Kg |
| Overall Dimension: 2110mm*1102mm*1598mm |
| Manufacture Plant: Dongfeng Cummins Plant |
| 6LTAA9.5-G3 – Performance Data |
| Rated Power/Speed 1: 250 kW/335HP (1500 RPM) |
| Rated Power/Speed 2: 265 kW/355HP (1800 RPM) |
| Fuel Consumption (50Hz): 56L/h |
| Fuel Consumption (60Hz): 63L/h |
| 6LTAA9.5-G3 – Technical Specification |
| Aspiration: Turbocharged-Intercooled |
| Fuel System: BYC PB Type Injection Pump + RSV Governor |
| Compression Radio: 16.6:1 |
| Electrical System: 24V |
| Lowest Starting Temp Without auxiliary system: -12℃ |
| Engine Cooling Fluid Volume: 34 L |
| Cooling Method: Water Cooled |
| Rated power: 250 kW; Rated speed: 1500 rpm |
| Rated power: 265 kW; Rated speed: 1800 rpm |
| Standby power: 280 kW/1500 rpm |
| Standby power: 290 kW/1800 rpm |
| Packing Details: Dimension: 2160 * 1155 * 1650 mm, G.W: 970 KG |
Cummins generator engines are utilized across various scenarios and applications, known for their reliability, efficiency, and adaptability. They are widely deployed in industrial settings, commercial buildings for backup power systems, and critical facilities such as data centers and medical institutions. Their capability extends to providing stable power support in remote areas and during emergencies, offering dependable solutions across diverse environments.
