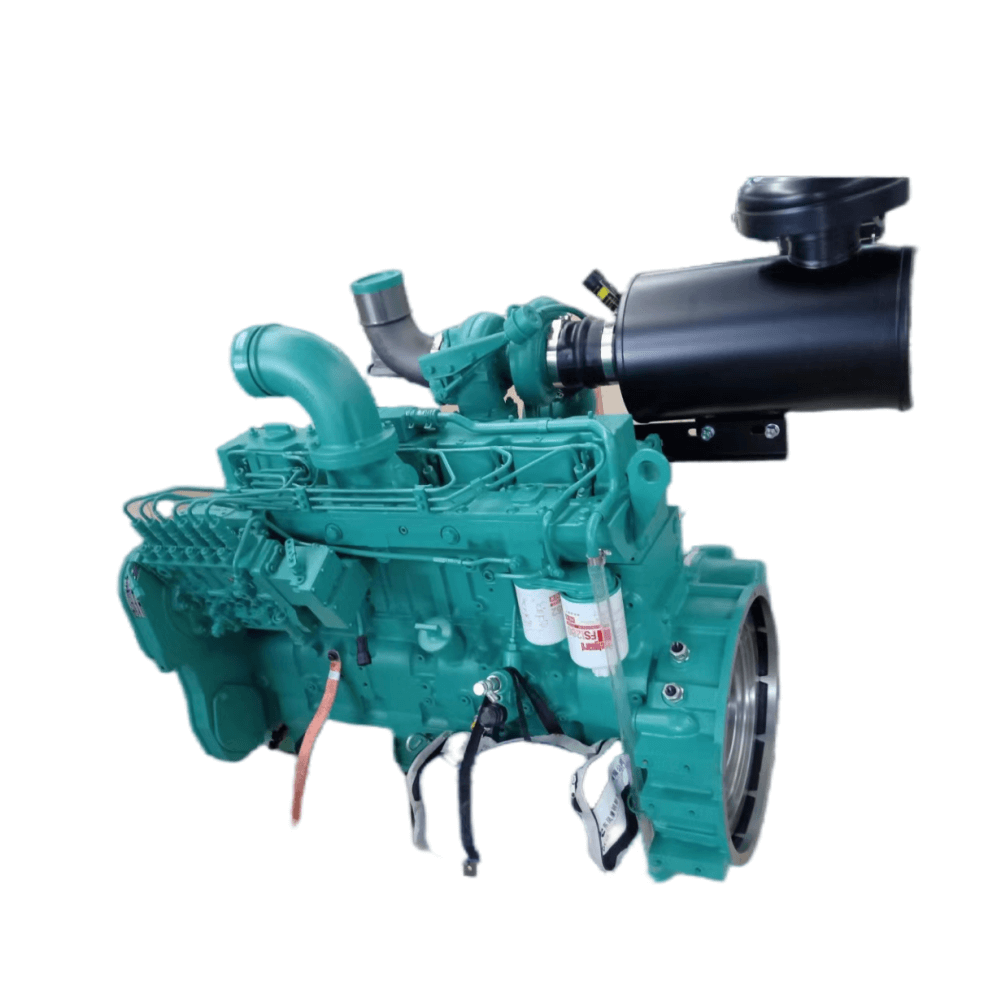

Model: 6LTAA8.9-G2 (220kw)
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 8.9L
Bore * Stroke: 114 * 145
Net Weight: 650 Kg
Overall Dimension: 1149mm*799mm*1022mm
Manufacture Plant: Dongfeng Cummins Plant
Rated Power/Speed (1500 rpm): 220 kW/295HP @ 1500 rpm
Standby Power (1500 rpm): 240 kW/322HP @ 1500 rpm
Continuous Output/Speed (1500 rpm): 180 kW/241HP @ 1500 rpm
Torque @ Rated/Standby Output: 1401/1528 N.m @ 1500 rpm
Rated Power/Speed (1800 rpm): 235 kW/315HP @ 1800 rpm
Standby Output/Speed (1800 rpm): 158 kW/346HP @ 1800 rpm
Continuous Output/Speed (1800 rpm): 190 kW/255HP @ 1800 rpm
Lowe Idle Speed: 850-950 rpm
Fuel Consumption @ Running: ≤ 220g/Kw.h
Aspiration: Turbocharged/Charge Air Cooled
Fuel System: BYC P7100 Pump/GAC Governor
Governor Type: Electronic, Regulation ≤5%
Compression Radio: 16.6:1
Electrical System (Starter Motor/Alternator): 12V/24V
Engine Cooling Fluid Volume: 11.1 L
Cooling Method: Water Cooled
