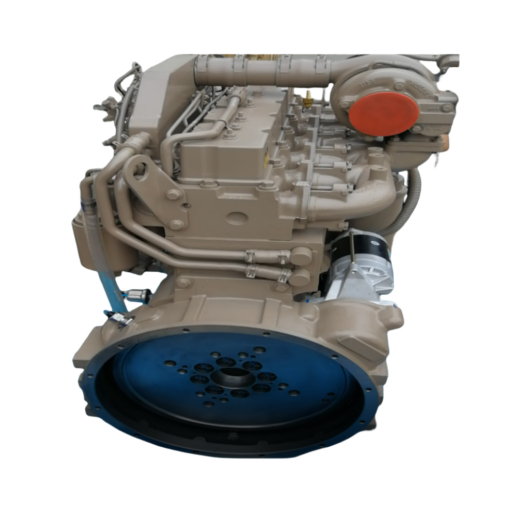

6CTA8.3-C260 – General Information
Model: 6CTA8.3-C260
Type: 6 Cylinders in Line
Displacement: 8.3L
Bore * Stroke: 114 * 135
Engine Configuration Number: D413061CX02
Net Weight (with flywheel & alternator): 637 Kg
Overall Dimension: 1560mm*900mm*1400mm
Manufacture Plant: Dongfeng Cummins Plant
6CTA8.3-C260 – Performance Data
Rated Power/Speed: 194 kW/260HP
Rated Speed: 2460 rpm
Max Torque/Speed: 782 N.m @ 2200 rpm
Fuel Consumption @ Rated Power: 231g/Kw.h
Max Continuous Running Altitude: 2000 m
6CTA8.3-C260 – Technical Specification
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: Wuxi Weifu PW2000 Pump/ RSV Govenor
Compression Radio: 18:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Engine Cooling Fluid Volume: 9.8 L
Cooling Method: Water Cooled
