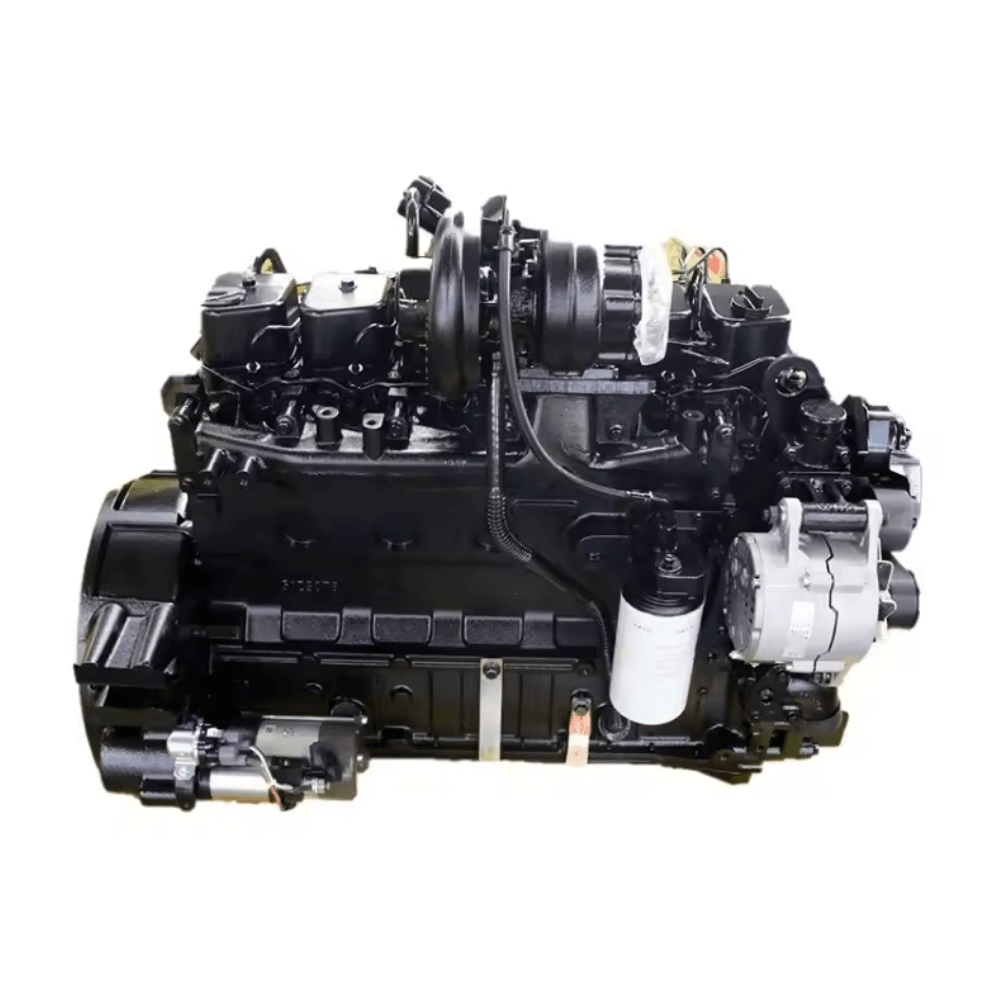

6BTA5.9-C175 – General Information
Model: 6BTA5.9-C175
Type: 6 Cylinders in Line
Displacement: 5.9L
Bore * Stroke: 102 * 120
Engine Configuration Number: D403039CX02
Net Weight (with flywheel & alternator): 443 Kg
Overall Dimension: 1100mm*750mm*988mm
Manufacture Plant: Dongfeng Cummins Plant
6BTA5.9-C175 – Performance Data
Rated Power/Speed: 128 kW/175HP
Rated Speed: 2310 rpm
Max Torque/Speed: 680 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 217g/Kw.h
Max Continuous Running Altitude: 2000 m
6BTA5.9-C175 – Technical Specification
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: Wuxi Weifu A Pump/ RSV Govenor
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Engine Cooling Fluid Volume: 10.4 L
Cooling Method: Water Cooled
