6BT5.9-M120 – General Information

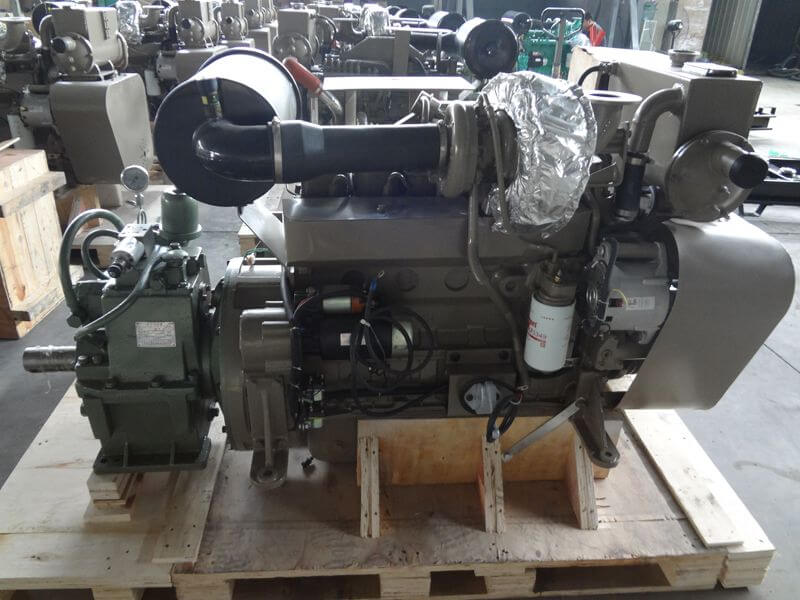

Model: Cummins 6BT5.9-M120
Type: 6 Cylinders in Line
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Net Weight (with flywheel & alternator): 432 Kg
Overall Dimension: 1100mm*750mm*988mm
Manufacture Plant: Dongfeng Cummins Plant
6BT5.9-M120 – Performance Data
Rated Power/Speed: 98 kW/120HP
Rated Speed: 2200 rpm
Max Torque/Speed: 430 N.m @ 1600 rpm
Torque/Rated Speed: 391 N.m @ 2200 rpm
Low Idle Speed: 750±100 rpm
Fuel Consumption (Running Speed): ≤263 g/kW.hr
6BT5.9-M120 – Technical Specification
Certification: CCS Certificates
Aspiration: Turbocharged
Fuel System: Wuxi Weifu AD Pump/RSV Governor
Starting System: Electrical Start (12V/24V)
Governor Type: Mechanical Control
Lowest Starting Temp Without auxiliary system: -12℃
Engine Cooling Fluid Volume: 9.9 L
Cooling Method: Sea water pump, Heat exchanger, Water cooled
