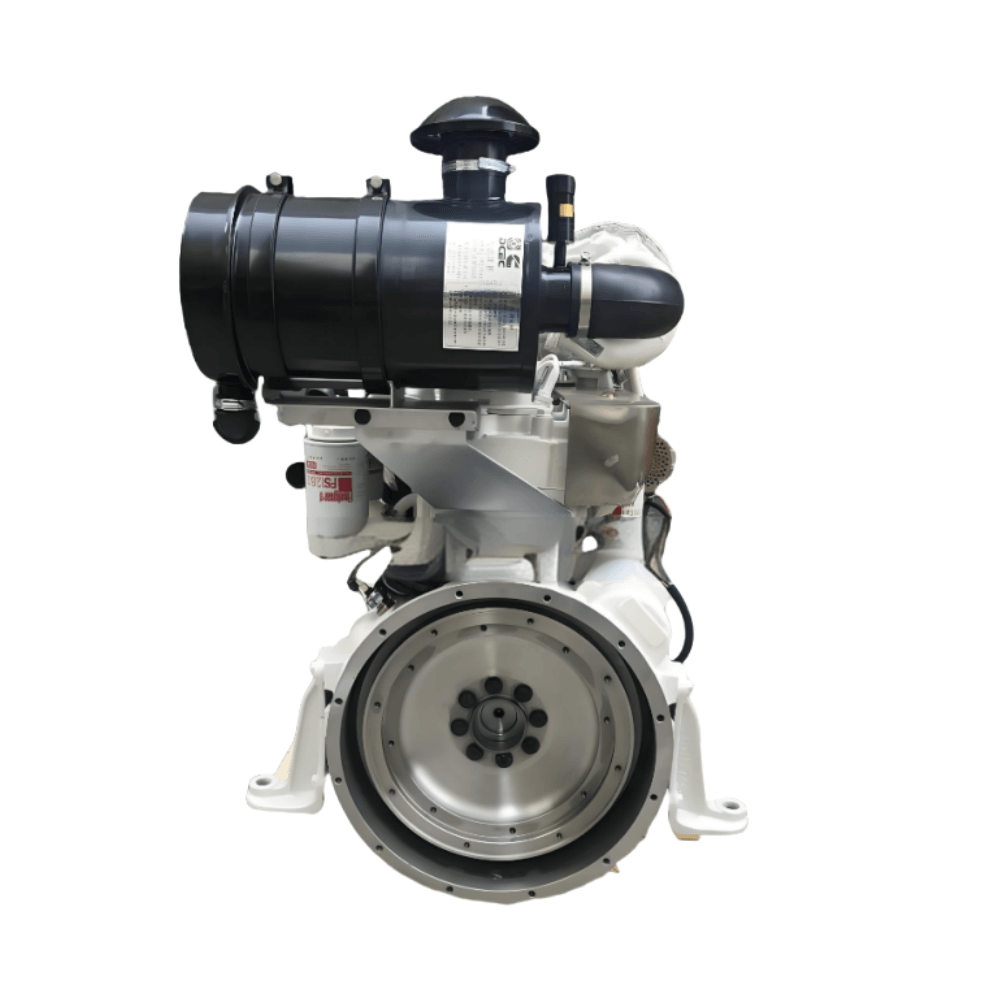

6BT5.9-GM100 – General Information
Model: 6BT5.9-GM100
Type: 6 Cylinders in Line
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Net Weight (with flywheel & alternator): 426 Kg
Overall Dimension: 867mm*544mm*988mm
Engine Configuration No.: D402051MX02
Manufacture Plant: Dongfeng Cummins Plant
6BT5.9-GM100 – Performance Data
Rated Power/Speed: 100 kW/134HP @ 1800 rpm
Standby Power: 110 kW/174HP @ 1800 rpm
Low Idle Speed: 1000±50 rpm
Fuel Consumption (Running Speed): ≤ 240 g/kW.hr
6BT5.9-GM100 – Technical Specification
Certification: CCS Certificates
Aspiration: Turbocharged
Fuel System: BYC A Pump/GAC Governor
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator):12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Engine Cooling Fluid Volume: 9.9 L
Ignition Order: 1-5-3-6-2-4
Cooling Method: Water Cooled
