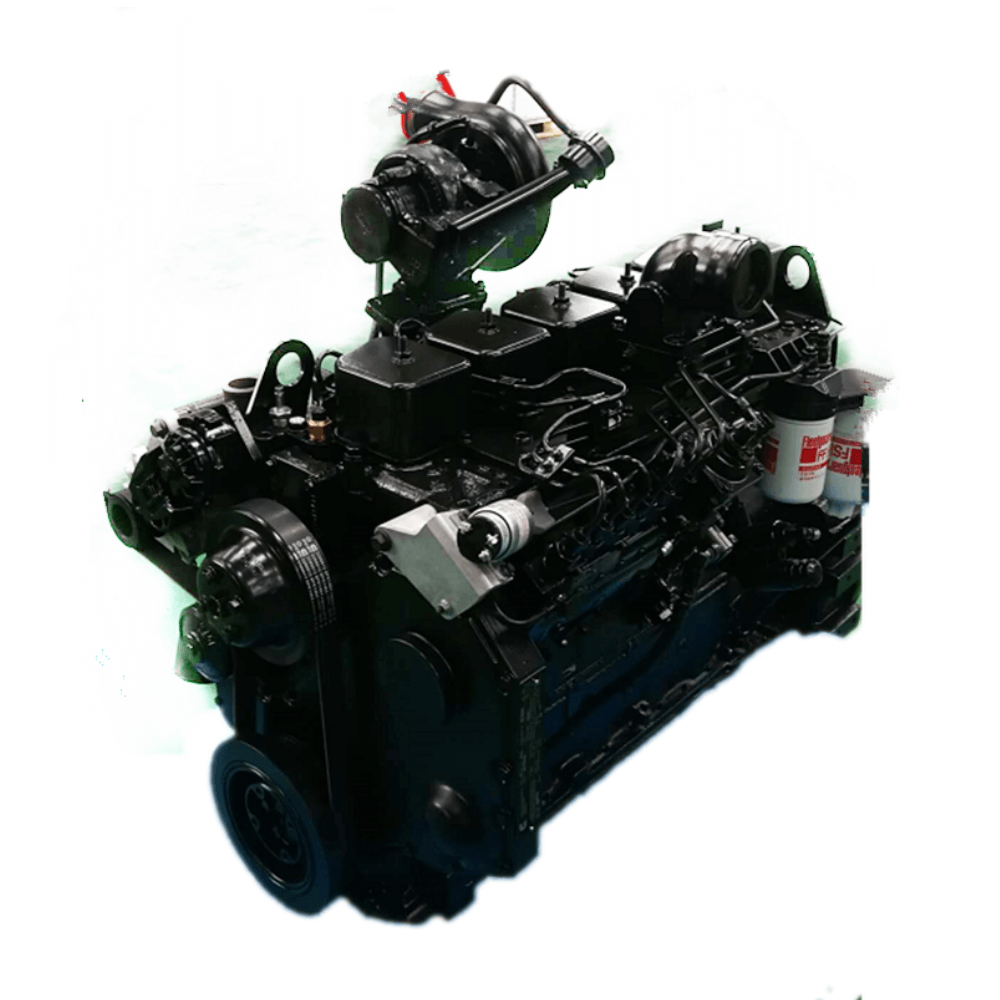

6BT5.9-C120 – General Information
Model: 6BT5.9-C120
Type: 6 Cylinders in Line
Displacement: 5.9L
Bore * Stroke: 102 * 120
Engine Configuration Number: D402056CX02
Net Weight (with flywheel & alternator): 432 Kg
Overall Dimension: 1100mm*750mm*988mm
Manufacture Plant: Dongfeng Cummins Plant
6BT5.9-C120 – Performance Data
Rated Power/Speed: 87 kW/120HP
Rated Speed: 2200 rpm
Max Torque/Speed: 436 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 225g/Kw.h
Max Continuous Running Altitude: 2000 m
6BT5.9-C120 – Technical Specification
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: Wuxi Weifu A Pump/ RSV Govenor
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Engine Cooling Fluid Volume: 9.9 L
Cooling Method: Water Cooled
