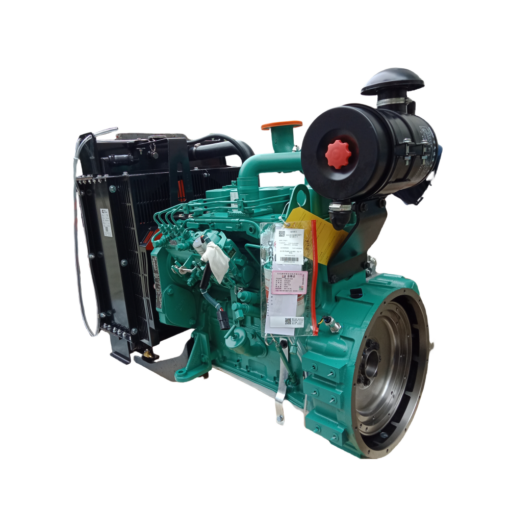

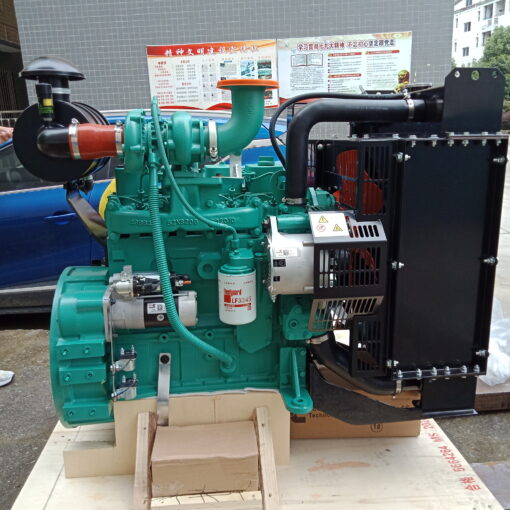

Model: 4BTA3.9-G2 (50kw)
Type: 4 Cylinders in Line, 4 Stroke Diesel
Displacement: 3.9L
Bore * Stroke: 102 * 120
Net Weight: 350 Kg
Overall Dimension: 867mm*544mm*988mm
Manufacture Plant: Dongfeng Cummins Plant
Rated Power/Speed (1500 rpm): 50 kW/67HP @ 1500 rpm
Standby Power (1500 rpm): 55 kW/74HP @ 1500 rpm
Torque @ Rated/Standby Output: 318/350 N.m @ 1500 rpm
Rated Power/Speed (1800 rpm): 60 kW/80HP @ 1800 rpm
Standby Power (1800 rpm): 66 kW/88HP @ 1800 rpm
Low Idle Speed: 950-1050 rpm
Fuel Consumption @ Running: ≤ 230g/Kw.h
Aspiration: Turbocharged/Afatercooled
Fuel System: BYC A Pump/RSV Governor
Governor Type: Electronic, Regulation ≤5%
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Engine Cooling Fluid Volume: 7.9 L
Cooling Method: Water Cooled
