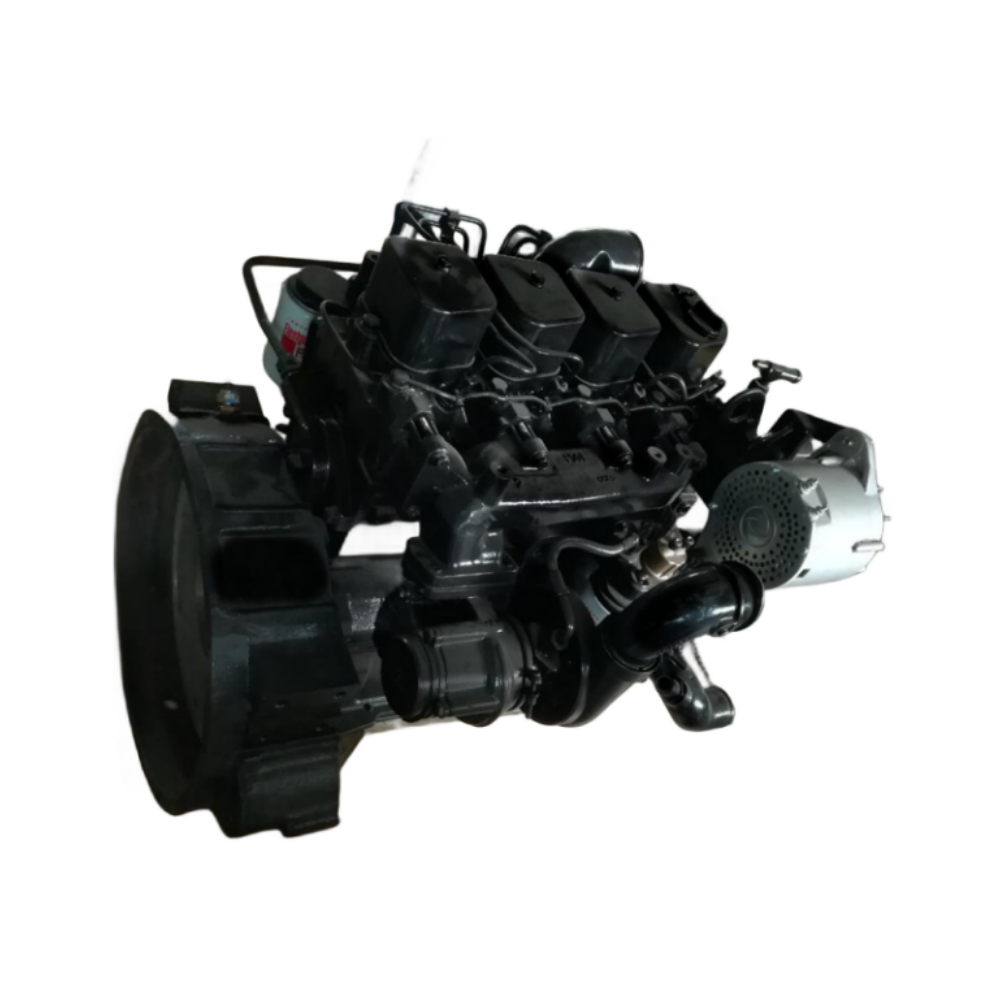

4BT3.9-C100 – General Information
Model: 4BT3.9-C100
Type: 4 Cylinders in Line
Displacement: 3.9L
Bore * Stroke: 102 * 120
Engine Configuration Number: D382043CX02
Net Weight (with flywheel & alternator): 338 Kg
Overall Dimension: 867mm*544mm*988mm
Manufacture Plant: Dongfeng Cummins Plant
4BT3.9-C100 – Performance Data
Rated Power/Speed: 75 kW/100HP
Rated Speed: 2400 rpm
Max Torque/Speed: 330 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 250g/Kw.h
Max Continuous Running Altitude: 2000 m
4BT3.9-C100 – Technical Specification
Certification: Euro I
Aspiration: Turbocharged-Intercooled
Fuel System: Weifu PW/RSV
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Engine Cooling Fluid Volume: 7.9 L
Cooling Method: Water Cooled
